MODEL: XF-420S-4I16U1

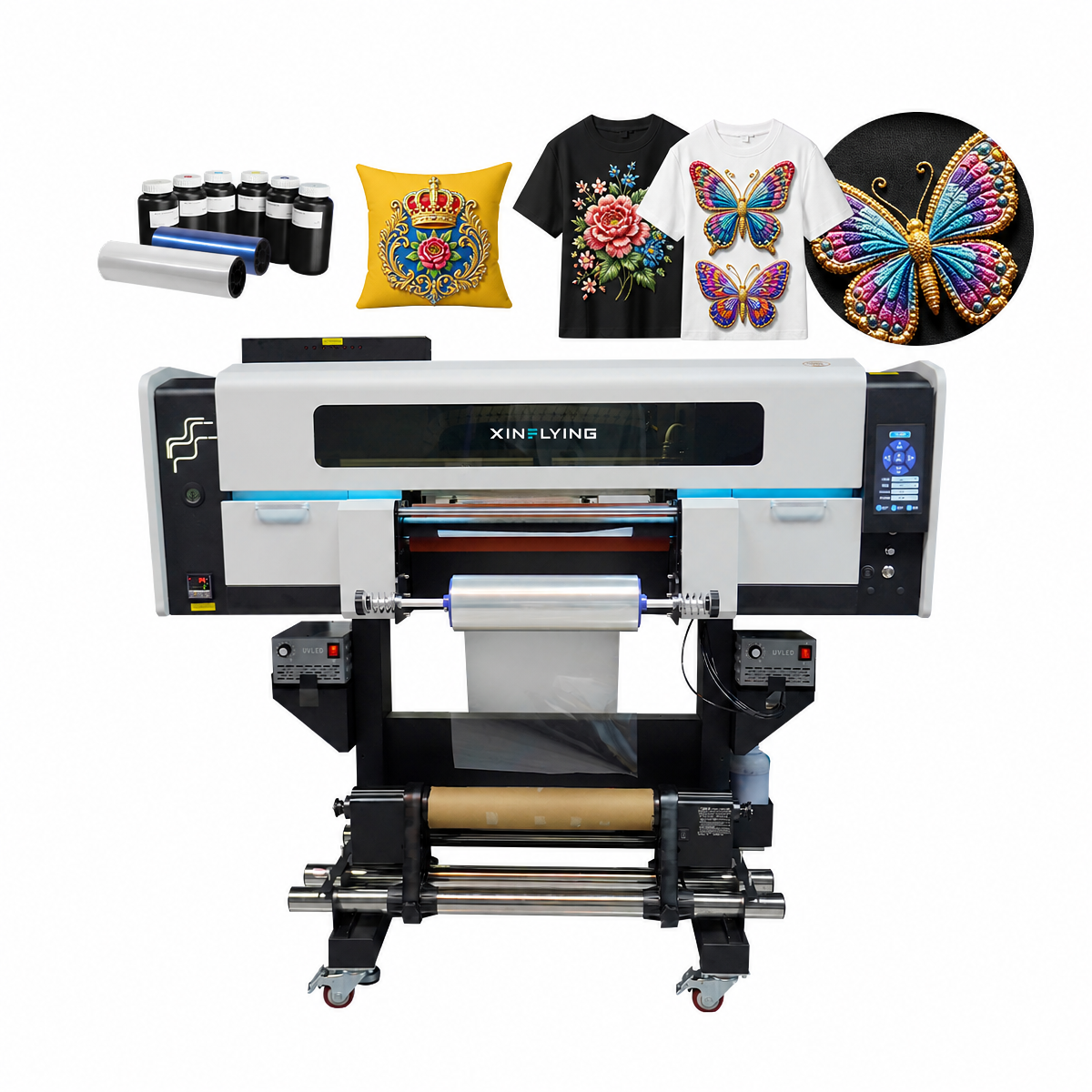

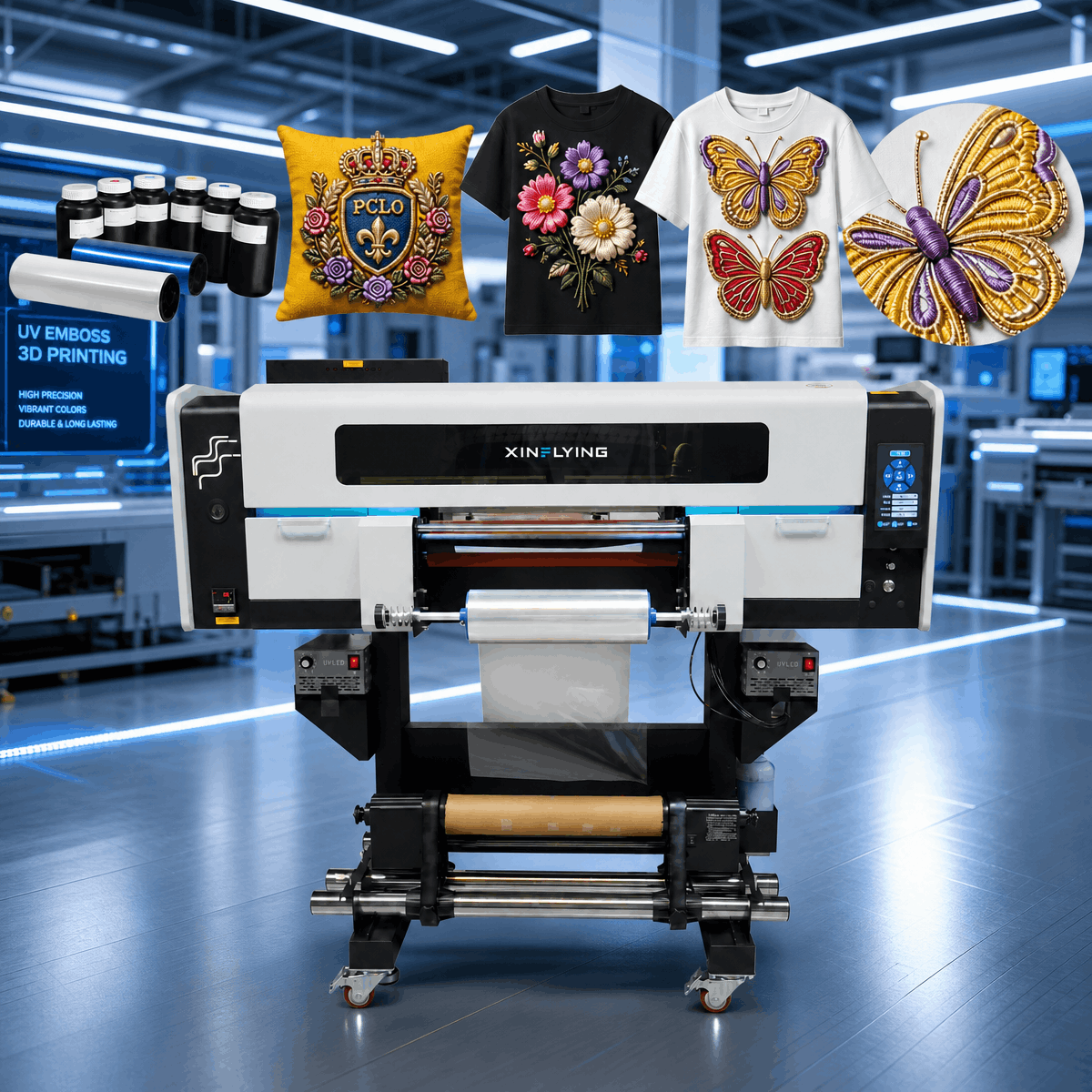

Xinflying UV DTF Printer Machine XF-420S-4I16U1

3D Embroidery & UV DTF Printer XF-420S combines textured embroidery effects with UV DTF transfer printing for premium labels, packaging, promotional products and custom decoration. Supports vibrant colors, white ink and high-precision printing on multiple materials.
3D Embroidery-Style Transfers
Epson Printhead
CMYK + Dual White + Varnish
Print Width:
16.5" / 420 mm
Print Head:
Epson I1600-U1
Print Speed:
Up to 3.5 m²/h (8-pass)
Ink Config:
CMYK + W + W + V

Product Specifications

Explore technical specifications and performance details to find the right fit for your application and production needs.

ParameterXF-420S-4I16U1
ModelXF-420S-4I16U1
Print Heads4pcs Epson i1600-U1
Printing Width42CM(16.5”)
Fastest Print Speed8PASS: 3.5㎡/h
Standard Print Speed8PASS: 1.5㎡/h
DPI720*1200
Printing ColorCMYK+W+W+V
Ink TypesUltra-soft UV Ink
Temperature/Humidity20-30℃/45-65%RH
Media TransmissionRubber Roller Method
RIP SoftwareXF SmartPrint
Power2.5KW
Power Supply/Voltage220V/110V;11.3A/22.73A;50HZ/60HZ
Machine SizeL1460*W830*H1300mm
Packaging SizeL1510*W1020*H1300mm
Net Weight160KG
Gross Weight221.5KG
Product Highlights

Key Features & Benefits of XF-420S-4I16U1

Create high-precision 3D embroidery-style DTF transfers using ultra-soft UV inks and dedicated transfer film. Ideal for custom t-shirts, jackets, and flexible materials—perfect for intricate floral motifs, bold lettering, and textured textile graphics.
01

3D Embroidery-Style Transfers

Deliver premium faux embroidery transfers using an advanced film printing and heat transfer process. Ideal for creating durable, textured designs—including floral elements, brand lettering, and custom garment graphics with no minimum order constraints.
02

High-Build Multi-Layer Ink Stacking

Powered by ultra-soft UV inks in a CMYK + W + W + W + V setup. This multi-layer white and gloss varnish configuration creates rich color depth and the tactile, raised thickness required for authentic 3D embroidery effects.
420S-3I16U1-3
03

Smart & Fast RIP Workflow

Easily process spot-color channels and print jobs with XF SmartPrint RIP software. Experience an efficient end-to-end workflow—from high-resolution printing and automated film processing to seamless heat-press transfer onto finished garments.
04

Multi-Material Compatibility

Expand your custom production across compatible fabrics, leather, promotional goods, and flexible materials. Achieve durable, stretch-resistant transfer results with optimized ink, dedicated film, and precise heat-press settings.
BUILT FOR YOUR BUSINESS

Who Is XF-420S-4I16U1 Best Suited For?

Ideal for print shops, garment decorators, and custom apparel businesses producing high-value 3D embroidery-style transfers for clothing, textiles, leather goods, and flexible materials.

Custom Apparel Businesses

Upgrade blank t-shirts, hoodies, and sportswear with high-value 3D faux embroidery transfers. Deliver realistic, stitch-like textures with excellent wash durability and flexible hand-feel—without the time and labor constraints of traditional embroidery.

Fashion & Textile Studios

Transform creative artwork, intricate floral motifs, and branded lettering into tactile textured prints. Bring complex, multi-color embroidery aesthetics to seasonal collections and designer apparel with effortless on-demand digital workflow.

Transfer Print Service Providers

Supply ready-to-press 3D embroidery DTF transfers to garment decorators and online custom shops. Expand your service portfolio with ultra-soft UV ink and specialized AB film technology that delivers high profit margins per sheet.

Leather Goods Decorators

Add premium embossed embroidery effects to genuine leather, PU goods, bags, shoes, and custom belts. Achieve flexible, crack-resistant transfers with outstanding adhesion that elevate handcrafted luxury accessories.

Promotional Product Suppliers

Deliver standout corporate gifts, canvas totes, custom caps, and flexible-material promotional merchandise. Fulfill low-volume, highly personalized orders quickly with high-impact, textured branding that outshines flat print.

Advertising & Graphic Print Shops

Expand beyond paper and rigid signs into profitable soft-signage and flexible-media decoration. Utilize roll-to-roll UV DTF transfer technology to seamlessly fulfill custom branding projects for local businesses and event sponsors.

Not sure which configuration fits your business?

3D Embroidery-Style Printing Applications

Unlock high-profit customization across fashion, sportswear, and accessories. Experience realistic 3D embroidery textures, vivid colors, and tactile relief effects on a wide range of fabrics, leather goods, and flexible materials.
Floral Textile Designs reference shown in the XINFLYING XF-420S-4I16U1 brochure

Intricate Art & Traditional Embroidery

Materials

Silk blends, cotton, linen & polyester fabrics

Typical Products

Cheongsams, designer kimonos, luxury loungewear & decorative wall tapestries

Print Capability

Ultra-fine needlework textures, micro-line definition, and multi-tone thread simulation

Logo & Lettering Transfers reference shown in the XINFLYING XF-420S-4I16U1 brochure

Embossed Badges & Teamwear Lettering

Materials

Heavyweight cotton, performance fleece, canvas & twill

Typical Products

Club patches, varsity jackets, athletic jerseys, snapback caps & workwear uniforms

Print Capability

High-density 3D puff relief, crisp typography, and high-contrast satin-stitch simulation

Decorative Garment Panels reference shown in the XINFLYING XF-420S-4I16U1 brochure

High-Density Statement Graphics

Materials

Denim, corduroy, synthetic blends & flexible PU leather

Typical Products

Denim jacket backings, boho collars, street fashion panels & tote bags

Print Capability

Seamless full-color CMYK blending, thick textured varnish overlay, and crack-free flexibility

Textured Fashion Motifs reference shown in the XINFLYING XF-420S-4I16U1 brochure

Vibrant Floral & Fashion Embellishments

Materials

Dark textiles, black cotton, knits & soft-shell outerwear

Typical Products

Hoodies, streetwear shirts, boutique dresses & branded fashion accessories

Print Capability

High-opacity multi-layer white backing, vivid floral color payoff, and flexible hand-feel

Print Samples & Applications

Real product photos, no retouching. Click any photo for a closer look.
ENGINEERED FOR RELIABILITY

Key Hardware Features of XF-420S-4I16U1

Engineered for 24/7 industrial production. Powered by four genuine Epson i1600-U1 printheads, an automated inline lamination system, and intelligent continuous ink management—delivering unmatched precision, zero downtime, and high-speed UV DTF output.
Ink Alarm

Intelligent Low-Ink Warning System

Say goodbye to dry-firing and wasted film. Real-time acoustic and visual alerts notify operators before ink runs out, safeguarding your Epson printheads and ensuring uninterrupted, heavy-duty production runs without job failures.
Tube Monitoring System

Tube Monitoring System

Engineered for high-viscosity ultra-soft UV inks. Dedicated independent fluid channels maintain constant ink pressure and smooth flow directly to all four i1600 printheads, eliminating starvation during high-speed, continuous printing.
Integrated film coated high-precision rubber roller

Synchronized Inline Film Lamination

Print and laminate in one seamless roll-to-roll pass. High-precision industrial rubber rollers deliver uniform tension and bubble-free adhesion, completely eliminating manual transfer lamination while slashing labor costs and production time in half.
ink cartridge

High-Capacity Bulk Ink Tanks

High-capacity bulk tanks equipped with smart fluid-level sensors continuously monitor ink flow and supply balance. Maintain rock-solid color consistency across massive print jobs while minimizing operator intervention and ink change frequency.
xinflying
Since 2010
Guangzhou · Panyu District HQ
Factory Strength

A Direct Manufacturer You Can Verify

Xinflying is a printing equipment manufacturer in Guangzhou, China, with a 20,000 m² production facility and 16+ years of engineering experience. We serve 50,000+ customers worldwide.

2010
Founded — Source Manufacturer
8
Overseas Warehouses
20,000㎡
Modern Factory Base
200+
Skilled Employees
50,000+
Global Customers Served Worldwide

After-Sales, Warranty & Technical Support

From installation to daily production, XINFLYING provides responsive technical support, training, warranty service, and spare-parts assistance worldwide.

Installation & Training

Remote setup and commissioning guidance via video call, plus hands-on operator training — your team produces correctly from day one.

Video-Call Setup
Operator Training
3 (35)

24/7 Technical Support

50+ engineers provide 24/7 online support for setup, maintenance, and troubleshooting.

WhatsApp · WeChat
Email & Phone
Print Head

Warranty & Spare Parts

A 12-month limited warranty from shipment covers manufacturing defects in eligible core components. Technical support continues after the warranty expires.

12-Month Warranty
After-Warranty Service
warehouse (4)

8 Overseas Warehouses

Our 8 overseas warehouses in the US, Brazil, and Mexico offer faster access to parts and consumables—reducing downtime and shipping costs. Contact us for availability.

Local Parts Stock
Fast Delivery

Warranty exclusions apply to consumables, wear parts, improper operation, incompatible consumables, and unauthorized repairs.

Certificates & Patents

Certified to international safety and quality standards — full-size copies are available on request.

CE Safety Compliance
Low Voltage Directive
CE EMC Compliance
Electromagnetic Compatibility
FCC Certificates
FCC Part 15 Subpart B
RoHS Compliance
Hazardous Substance Restrictions
Textile Printing Patent
Chinese Invention Patent
Precision Positioning Patent
Chinese Utility Model Patent

Compliance documents apply to the listed models. Patents relate to specific technologies.

Frequently Asked Questions

1. What printheads and printing width does the 420S have?
The Xinflying UV Printer Machine-420S is equipped with 4x Epson i1600-U1 printheads and supports a 420mm (16.5″) printing width. This setup delivers precise, high-resolution output at 3.5 m²/h (8-pass), making it well-suited for labels, stickers, and custom UV DTF applications.
Yes. The 420S is a versatile all-in-one system combining UV DTF printing with embroidery-style capabilities, allowing seamless transitions between the two. This enables complex designs, raised 3D textures, and personalized patterns on a wide range of fabrics — ideal for t-shirts, hoodies, caps, and promotional products.
The 420S features a built-in ink alarm and ink sensor that continuously track ink levels and flow through the supply tubes. This real-time monitoring alerts operators before ink runs out, helping prevent nozzle damage, air bubbles, or interrupted print jobs during long production runs.
Yes. The 420S includes an integrated laminating system with high-adhesion rubber rollers, combining UV printing and lamination in a single pass. This streamlines workflow, saves space, and delivers strong adhesion with a high-gloss, durable finish.
The 420S is built on a reliable Hoson control board and includes a 7-inch touchscreen, automatic film peeling system, vacuum suction platform, printhead anti-collision protection, air-cooled UV curing lamps, and intelligent base plate heating. Together, these features ensure long-term stability, accurate registration, and consistent, professional-quality results.
