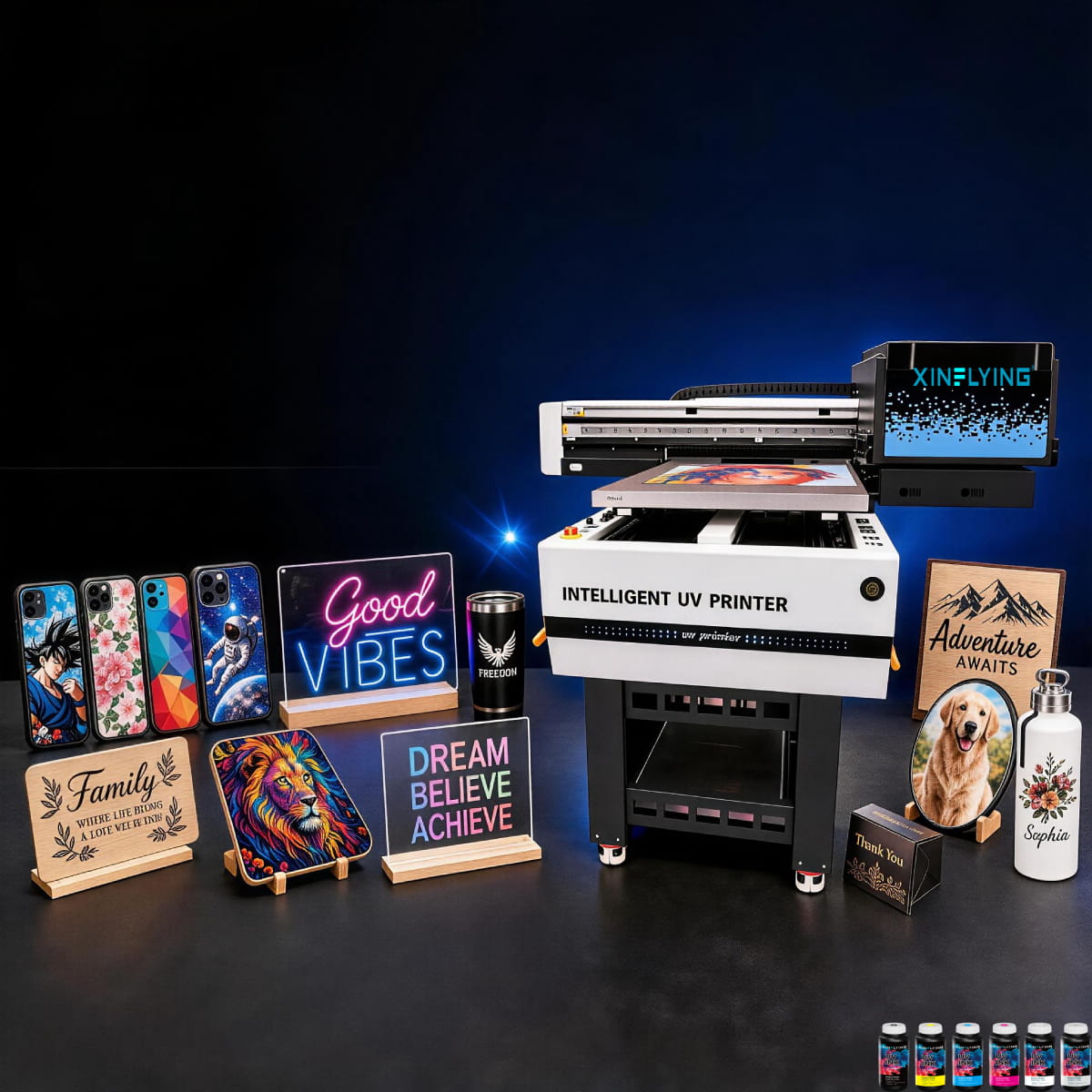

XF-S6090S machine and accessory overview

MODEL: XF-S6090S

Xinflying UV Flatbed Printer Machine XF-S6090S

The XINFLYING XF-S6090S-4I32U1 brings 60 × 90 cm UV flatbed printing to suitable glass, acrylic, wood, and other rigid products. Four Epson i3200-U1 printheads and LED UV curing support custom graphics, with vision positioning and roll-media accessories available to match your chosen setup.

Vision Positioning System

Intelligent Limit Function

Intelligent Dual Negative Pressure Ink Supply System

Print Width:

60 × 90 cm

Print Head:

4 × Epson i3200-U1

Print Speed:

6-pass: 5–9 m²/h

Ink Config:

CMYK/W; light-color option

Supporting Equipment & Consumables

Xinflying UV Flatbed Ink-008

Xinflying UV DTF Transfer Film-U004

Xinflying UV DTF Sticker AB Film-U003

Product Specifications

Explore technical specifications and performance details to find the right fit for your application and production needs.

Parameter	XF-S6090S-4I32U1
Model	XF-S6090S-4I32U1
Print Head	4pcs i3200-U1
Print Speed	6PASS:5-9㎡/h
Print Size	60*90cm
Color	CMYK+ CMYK+W+W Light Color 9 Color Schemes: W+CMYK+LK LC LM LLK+V
Main Board	Hansen Board Card
Print Resolution	720*1800 dpi
Print Height	0-200mm(Customizable)
RIP	XF SmartPrint
Positioning System	Vision Positioning System
Printing Platform	Yinmei Air Suction Platform
Transmission System	X-axis: Single Guide Rail + Motor Y-axis: Dual Guide Rails + Motor
Curing System	LED UV Lamp - lnstant Drying After Printing
File Format	TIFF/BMP/PDF/EPS/JPG
Working Environment	Temperature :20℃-30℃；Humidity :45%-65%
Print Head Maintenance	Automatic Cleaning ；Automatic Heating
Ink Supply System	Intelligent Dual Route Negative Pressure
Nozzie Protection	Automatic Collision Detection & Prevention
Height Measurement	Manual Measurement Optional Automatic Measurement
Power Requirements	900W;220V/110V,50HZ~60HZ;4A/8A
Interface Method	Gigabit Fiber
Machine Size	L170W137H75 cm
Packing Size	L180W150H94 cm
Net Weight	≈190 KG
Gross Weight	≈295 KG

Product Highlights

Key Features & Benefits of XF-S6090S

Build a product range around a 60 × 90 cm UV flatbed, with vision positioning and accessory options specified for the items you print.

Vision-Assisted Product Placement

Specify vision positioning for projects that need artwork aligned to shaped items. This function helps you plan the printing setup around the position of each piece.

Flatbed & Roll-Media Printing

Use the 60 × 90 cm bed for suitable flat products, then specify the required accessories for roll-media printing. Match the configuration to your intended product range.

Intelligent Limits & Head Protection

The listed limit function and automatic collision detection help manage movement near the workpiece. Automatic head cleaning and heating support routine operation.

Dual-Route Negative-Pressure Ink Supply

The specified dual-route negative-pressure system controls ink delivery for the selected color layout. It supports the four-head UV printing setup across the machine’s listed ink configurations.

BUILT FOR YOUR BUSINESS

Who Is XF-S6090S Best Suited For?

For shops decorating flat panels, small gifts, and consumer accessories, the S6090S offers a 60 × 90 cm UV platform with configuration choices for the intended application.

Personalized Gift Studios

Develop artwork for suitable tags, keychains, badges, and other custom gifts on a 60 × 90 cm flatbed.

Acrylic & Glass Decorators

Plan decorative graphics for compatible acrylic and glass pieces, with surface preparation and adhesion checked on the actual material.

Signage & Display Shops

Create designs for suitable flat display panels, including the wood, metal, and PVC sheet categories listed in the brochure.

Small-Item Printing Businesses

Build layouts for small blanks such as badges or hair accessories. Specify vision positioning when the project calls for it.

Consumer Accessory Brands

Explore branded graphics for suitable plastic and 3C product surfaces, with samples used to confirm the intended finish.

Shops Expanding Printing Formats

Typical Products

Keychains · Promotional gifts · Branded accessories

Print Capability

Build personalized graphic designs for compatible small gift surfaces.

Print Samples & Applications

Real product photos, no retouching. Click any photo for a closer look.

ENGINEERED FOR RELIABILITY

Key Hardware Features of XF-S6090S

Four Epson i3200-U1 printheads work with the listed suction platform, ink supply system, and guided motion structure. The close-ups below show the machine’s working components.

Four Epson i3200-U1 Printheads

The four-head assembly uses Epson i3200-U1 printheads. The brochure also lists automatic cleaning and heating functions for head care during daily operation.

Air-Suction Printing Platform

The brochure specifies a Yinmei air-suction platform. Its perforated bed supports suitable flat workpieces during printing; fixtures and holding requirements depend on the item.

Configurable UV Ink Supply

The ink supply is specified as an intelligent dual-route negative-pressure system. Select the color layout for the application, including the brochure’s light-color option where required.

Protected Cable Routing

A cable carrier follows the moving printing assembly and organizes its wiring along the travel path. The close-up shows this motion-related component rather than a media-feeding conveyor.

Since 2010

Guangzhou · Panyu District HQ

Factory Strength

A Direct Manufacturer You Can Verify

Xinflying is a printing equipment manufacturer in Guangzhou, China, with a 20,000 m² production facility and 16+ years of engineering experience. We serve 50,000+ customers worldwide.

2010

Founded — Source Manufacturer

Overseas Warehouses

20,000㎡

Modern Factory Base

200+

Skilled Employees

50,000+

Global Customers Served Worldwide

After-Sales, Warranty & Technical Support

From installation to daily production, XINFLYING provides responsive technical support, training, warranty service, and spare-parts assistance worldwide.

Installation & Training

Remote setup and commissioning guidance via video call, plus hands-on operator training — your team produces correctly from day one.

Video-Call Setup

Operator Training

24/7 Technical Support

50+ engineers provide 24/7 online support for setup, maintenance, and troubleshooting.

WhatsApp · WeChat

Email & Phone

Warranty & Spare Parts

A 12-month limited warranty from shipment covers manufacturing defects in eligible core components. Technical support continues after the warranty expires.

12-Month Warranty

After-Warranty Service

8 Overseas Warehouses

Our 8 overseas warehouses in the US, Brazil, and Mexico offer faster access to parts and consumables—reducing downtime and shipping costs. Contact us for availability.

Local Parts Stock

Fast Delivery

Warranty exclusions apply to consumables, wear parts, improper operation, incompatible consumables, and unauthorized repairs.

Certificates & Patents

Certified to international safety and quality standards — full-size copies are available on request.

CE Safety Compliance

Low Voltage Directive

CE EMC Compliance

Electromagnetic Compatibility

FCC Certificates

FCC Part 15 Subpart B

RoHS Compliance

Hazardous Substance Restrictions

Textile Printing Patent

Chinese Invention Patent

Precision Positioning Patent

Chinese Utility Model Patent

Compliance documents apply to the listed models. Patents relate to specific technologies.

Frequently Asked Questions

What size and height can the S6090S print?

The brochure lists a 60 × 90 cm print area and a 0–200 mm print height, with customization noted. Workpiece dimensions, surface shape, and fixture clearance should be checked for the intended application.

Are vision positioning and roll-media printing included?

Vision positioning, roll-media equipment, and the stand depend on the ordered configuration. Confirm the included equipment and accessories in your quotation. The XF-S6090S does not support cylindrical printing.

Which printheads and color layouts are available?

This model uses four Epson i3200-U1 printheads. The brochure lists CMYK+CMYK+W+W and a separate light-color scheme that includes white, CMYK, LK, LC, LM, LLK, and varnish. Confirm the required layout before ordering.

What print speed should I use for planning?

The English brochure lists 6-pass output at 5–9 m²/h. Discuss the artwork, color configuration, and selected print mode when planning a job so the quotation refers to the same setup.

Can it print on every glass, metal, or plastic item?

The brochure lists these material categories, but it does not provide a universal compatibility guarantee. Surface treatment, ink selection, workpiece support, and adhesion should be evaluated on the actual item. Share your material and artwork when requesting a sample.

Still have questions about the XF-S6090S ?

Get a quote, expert product advice, or a free sample print—our technical sales team replies within 24 hours.

XF-S6090S UV Flatbed Printing Demo

Watch the S6090S printing process and review the workpiece setup for a UV flatbed application.
