Bottles & Drinkware
Materials
Suitable glass · Metal · Plastic
Typical Products
Bottles · Tumblers · Mugs
Print Capability
Apply logos and decorative graphics to compatible drinkware through film-to-product transfer.
MODEL: XF-450S

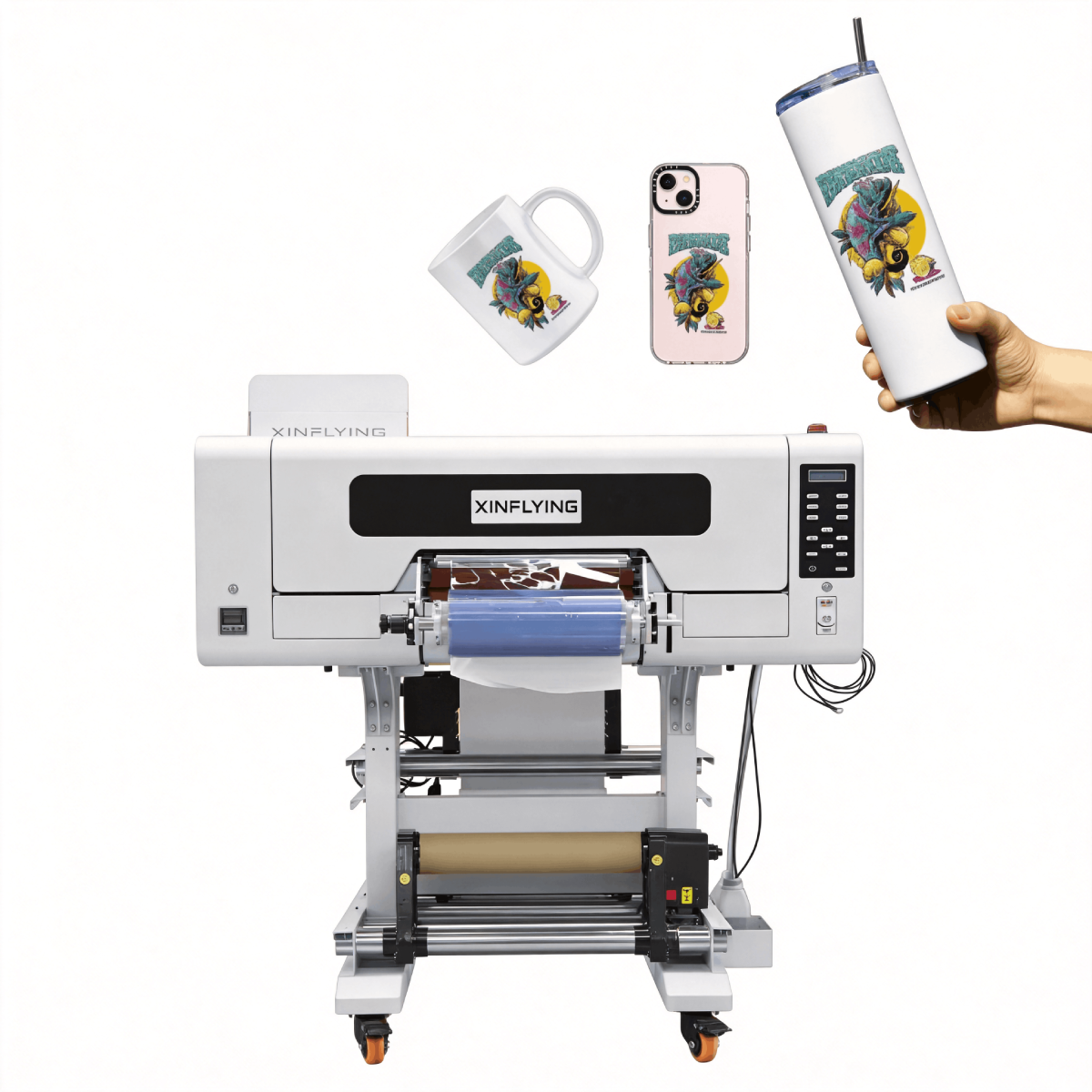

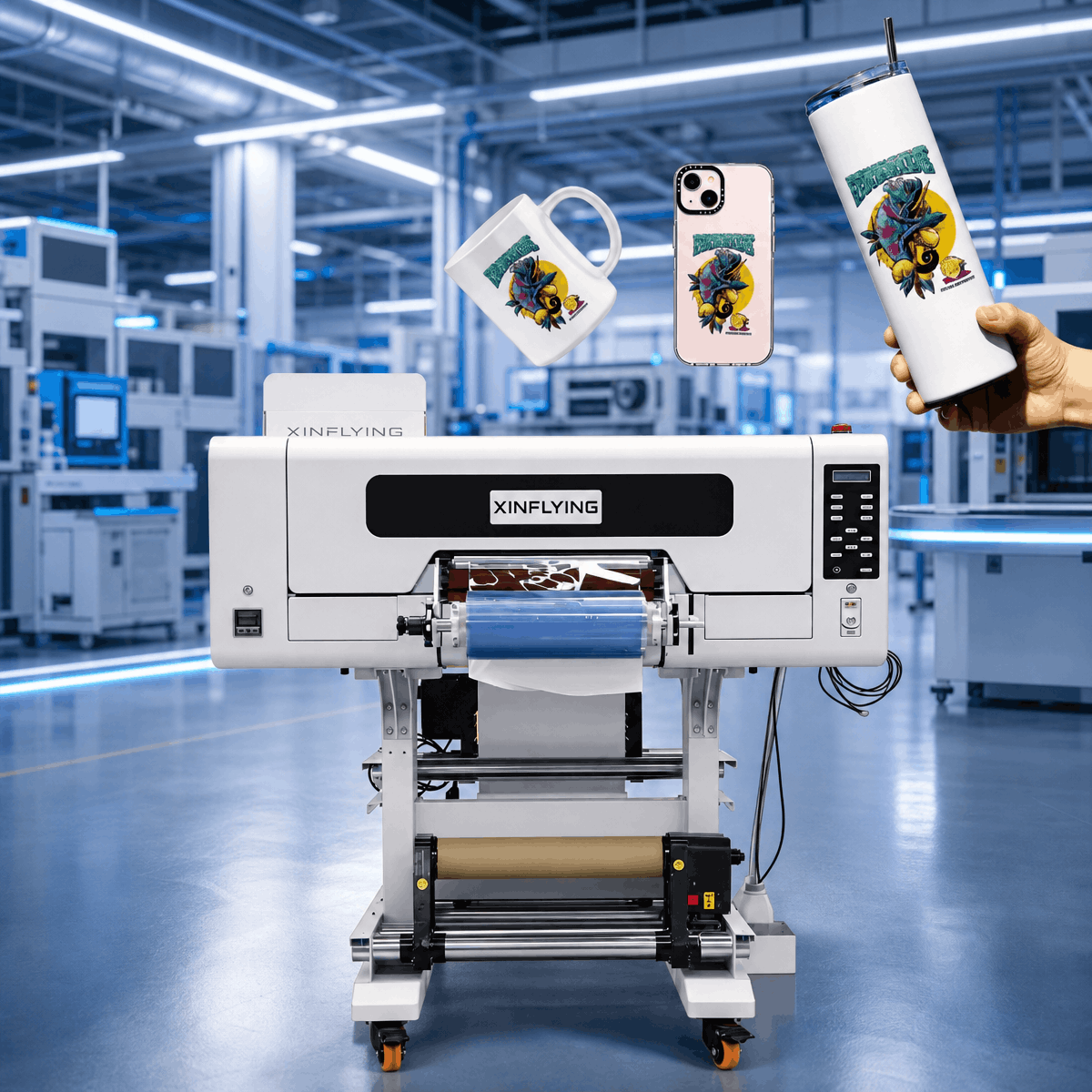

Xinflying UV Printer Machine XF-450S
Create colorful UV DTF labels for bottles, gifts, packaging, and custom branding with the XINFLYING XF-450S UV. Its 30 cm format, three-head Epson setup, and integrated printing and lamination help you decorate flat, curved, and uneven hard surfaces through film transfer.
1 Epson i3200U1-HD + 2 i1600-U1 Heads
Expanded Colors + White + Varnish
Printing & Lamination in One Machine
Print Width:
12”（30CM)
Print Head:
i3200U1-HD+i1600-U1
Print Speed:
Up to 3.5 m²/h (8PASS)
Ink Config:
CMYK FY FM RD OR+W+V
Product Specifications
Explore technical specifications and performance details to find the right fit for your application and production needs.
| Parameter | XF-450S |
|---|---|
| Print Heads | 1pc Epson i3200U1-HD+2pcs Epson i1600-U1 |
| Printing Width | 12”（30CM) |
| Fastest Print Speed | 8PASS:3.5m²/h |
| Standard Print Speed | 8PASS:2.75m²/h |
| Printing Color | CMYK FY FM RD OR+W+V |
| Media Type | A+B UV pet film |
| Operating System | Windows 11(64bit)/Windows 10(64bit) |
| RIP Software | XF SmartPrint |
| Power | 1KW |
| Power Supply/Voltage | 220V/110V，4.5A/9A，50HZ/60HZ |
| Machine Size | L1300*W1000*H1450mm |
| Packing Size | L1430*W830*H780mm |
| Net Weight | 120KG |
| Gross Weight | 155KG |
Product Highlights
Key Features & Benefits of XF-450S
Turn everyday products into branded pieces with colorful UV DTF labels, white and varnish, and an integrated printing-and-lamination workflow.
01
More Color Options for Your Designs
Work with CMYK plus FY, FM, RD, and OR, alongside white and varnish. Give logos, decorative artwork, and product labels more color options and a distinctive finished look.
02
Print & Laminate in One Workflow
Bring film printing and lamination together on the XF-450S. Keep these two production stages on one machine when preparing A+B UV PET film for custom label applications.
03
Take Your Graphics Beyond Flat Surfaces
Transfer your artwork onto suitable flat, curved, and uneven surfaces. Decorate glass, acrylic, metal, wood, plastic, and paper products with custom labels that follow the shape of the finished item.
04
Up to 3.5 m²/h at 8PASS
The specified fastest speed is 3.5 m²/h, with a standard speed of 2.75 m²/h, both at 8PASS. Use these benchmarks to discuss a printing setup matched to your artwork and order volume.
BUILT FOR YOUR BUSINESS
Who Is XF-450S Best Suited For?
For print shops and product decorators adding custom UV DTF labels to drinkware, gifts, packaging, and branded hard goods.
UV DTF Label Print Shops
Produce film-based labels for customers decorating hard goods, using a 30 cm printing format and integrated lamination.
Drinkware Decorators
Create custom graphics for suitable bottles, tumblers, and mugs, with a transfer workflow suited to curved product surfaces.
Promotional Gift Suppliers
Add brand logos, decorative motifs, and personalized artwork to compatible hard-surface gifts and promotional products.
Packaging & Brand Studios
Develop decorative labels for suitable paper packaging, boxes, and branded presentation pieces with color, white, and varnish.
Phone Accessory Businesses
Offer personalized phone-case graphics and small decorative labels for compatible plastic and other hard-surface accessories.
Acrylic & Signage Workshops
Create logos and decorative graphics for suitable acrylic, metal, and wood products without feeding each finished object through the printer.
Not sure which configuration fits your business?
Xinflying UV DTF Sticker Printer Applications
From bottles and phone cases to gift boxes and decorative hard goods, apply your graphics through a UV DTF film-transfer workflow. Match the label and application method to each product’s material, coating, and shape.
Personalized Phone Cases
Materials
Compatible plastic · Suitable hard-surface cases
Typical Products
Phone cases · Accessory covers
Print Capability
Personalize compatible cases with illustrated motifs, lettering, and small decorative labels.
Product Branding Labels
Materials
Suitable glass · Acrylic · Metal · Plastic
Typical Products
Logo labels · Brand marks · Decorative stickers
Print Capability
Create brand graphics with the specified color, white, and varnish configuration for compatible hard products.
Packaging & Gift Boxes
Materials
Suitable paper packaging · Compatible rigid box surfaces
Typical Products
Gift boxes · Branded packaging · Presentation pieces
Print Capability
Add decorative labels and brand details to compatible packaging and presentation surfaces.
Decorative Hard Goods
Materials
Suitable acrylic · Wood · Glass · Plastic
Typical Products
Decorative objects · Small gifts · Branded display pieces
Print Capability
Transfer colorful motifs onto suitable decorative products, including curved or uneven surfaces.
Metal-Surface Graphics
Materials
Suitable metal · Compatible coated metal
Typical Products
Decorative metal panels · Branded metal goods
Print Capability
Apply decorative labels to compatible metal surfaces using the UV DTF transfer workflow.
ENGINEERED FOR RELIABILITY
Key Hardware Features of XF-450S
A mixed Epson three-head configuration, built-in UV lamps, film rewinding hardware, and a HIWIN guide rail form the XF-450S printing system.
Dual-Fan Smart Cooling System
Dual fans dissipate heat from the printhead and circuit board during extended UV DTF printing runs. This helps prevent overheating, protect key components, and maintain reliable output.
Ink Channel System
Independent CMYK + White ink channels reduce cross-contamination for clean, consistent colors. A white base layer gives UV DTF transfers vibrant results on dark or transparent surfaces.
Simple Operation
An illuminated power switch makes startup simple and power status easy to check. Built-in overload protection adds electrical safety for everyday UV DTF printer operation.
Automatic Take-Up & Feeding System
Automatic rollers feed and wind UV DTF transfer film with less manual handling. Synchronized drives maintain even tension to reduce wrinkles and misalignment when producing UV DTF stickers.
Since 2010
Guangzhou · Panyu District HQ
Factory Strength
A Direct Manufacturer You Can Verify
Xinflying is a printing equipment manufacturer in Guangzhou, China, with a 20,000 m² production facility and 16+ years of engineering experience. We serve 50,000+ customers worldwide.
2010
Founded — Source Manufacturer
8
Overseas Warehouses
20,000㎡
Modern Factory Base
200+
Skilled Employees
50,000+
Global Customers Served Worldwide
After-Sales, Warranty & Technical Support
From installation to daily production, XINFLYING provides responsive technical support, training, warranty service, and spare-parts assistance worldwide.
Installation & Training
Remote setup and commissioning guidance via video call, plus hands-on operator training — your team produces correctly from day one.
Video-Call Setup
Operator Training
24/7 Technical Support
50+ engineers provide 24/7 online support for setup, maintenance, and troubleshooting.
WhatsApp · WeChat
Email & Phone
Warranty & Spare Parts
A 12-month limited warranty from shipment covers manufacturing defects in eligible core components. Technical support continues after the warranty expires.
12-Month Warranty
After-Warranty Service
8 Overseas Warehouses
Our 8 overseas warehouses in the US, Brazil, and Mexico offer faster access to parts and consumables—reducing downtime and shipping costs. Contact us for availability.
Local Parts Stock
Fast Delivery
Warranty exclusions apply to consumables, wear parts, improper operation, incompatible consumables, and unauthorized repairs.
Certificates & Patents
Certified to international safety and quality standards — full-size copies are available on request.
CE Safety Compliance
Low Voltage Directive
CE EMC Compliance
Electromagnetic Compatibility
FCC Certificates
FCC Part 15 Subpart B
RoHS Compliance
Hazardous Substance Restrictions
Textile Printing Patent
Chinese Invention Patent
Precision Positioning Patent
Chinese Utility Model Patent
Compliance documents apply to the listed models. Patents relate to specific technologies.
Frequently Asked Questions
Which printheads does this XF-450S configuration use?
This configuration uses one Epson i3200U1-HD and two Epson i1600-U1 printheads, for three printheads in total. The printing width is 12 inches (30 cm). Ask for this configuration when requesting a quote so the supplied machine matches the listed specifications.
Does the XF-450S combine printing and lamination?
Yes. Printing and lamination are integrated into the machine’s UV DTF film workflow. The specified media is A+B UV PET film. The finished label is then applied to the target product, rather than printing directly onto the finished object.
What are the fastest and standard printing speeds?
The brochure lists 3.5 m²/h as the fastest printing speed and 2.75 m²/h as the standard speed, both at 8PASS. These figures describe printing output, rather than the number of finished products decorated per hour.
Which colors, software, and operating systems are specified?
The listed color configuration is CMYK FY FM RD OR+W+V. The specified RIP software is XF SmartPrint, with Windows 11 (64-bit) or Windows 10 (64-bit). Confirm the complete ink and software setup with your quotation.
Which product surfaces can receive the labels?
The brochure lists paper, glass, acrylic, metal, wood, and plastic, including flat, curved, and uneven surfaces. Suitability depends on the material, coating, and application method. Share a product sample and artwork with XINFLYING to check the transfer result before production.
Still have questions about the XF-450S ?
Get a quote, expert product advice, or a free sample print—our technical sales team replies within 24 hours.
XF-450S UV DTF Printer: Custom Labels from Film to Product
Explore the XF-450S UV DTF printing workflow for branded products and decorative labels. Share your artwork, target material, and order volume with XINFLYING to discuss the printer, film, and ink setup for your application.
