Decorative flat panels
Materials
Suitable glass · Acrylic · PVC board
Typical Products
Small decorative panels · Display graphics · Signs
Print Capability
Print custom artwork on suitable flat panels sized for the 40 x 60 cm working area.
MODEL: XF-H4060S

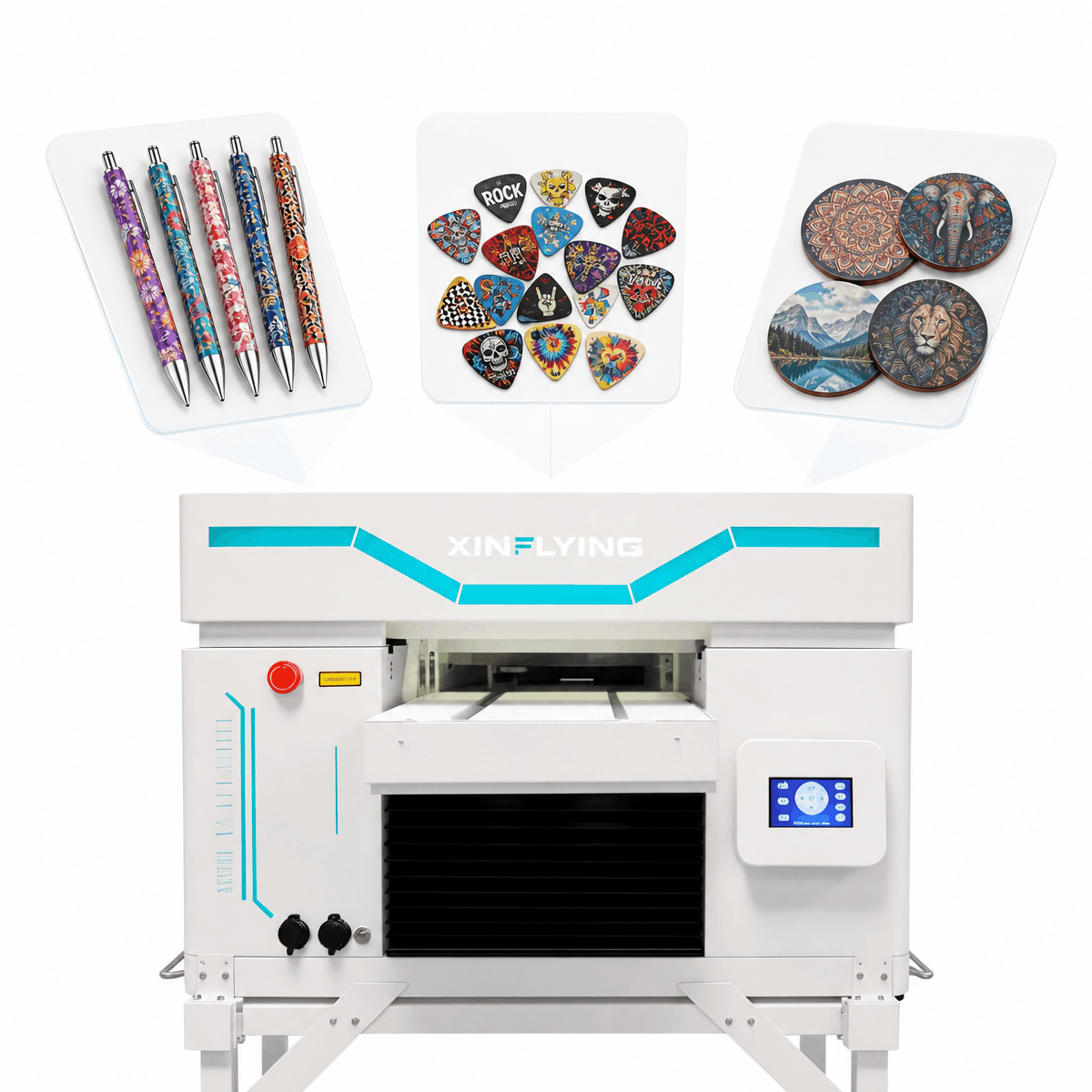

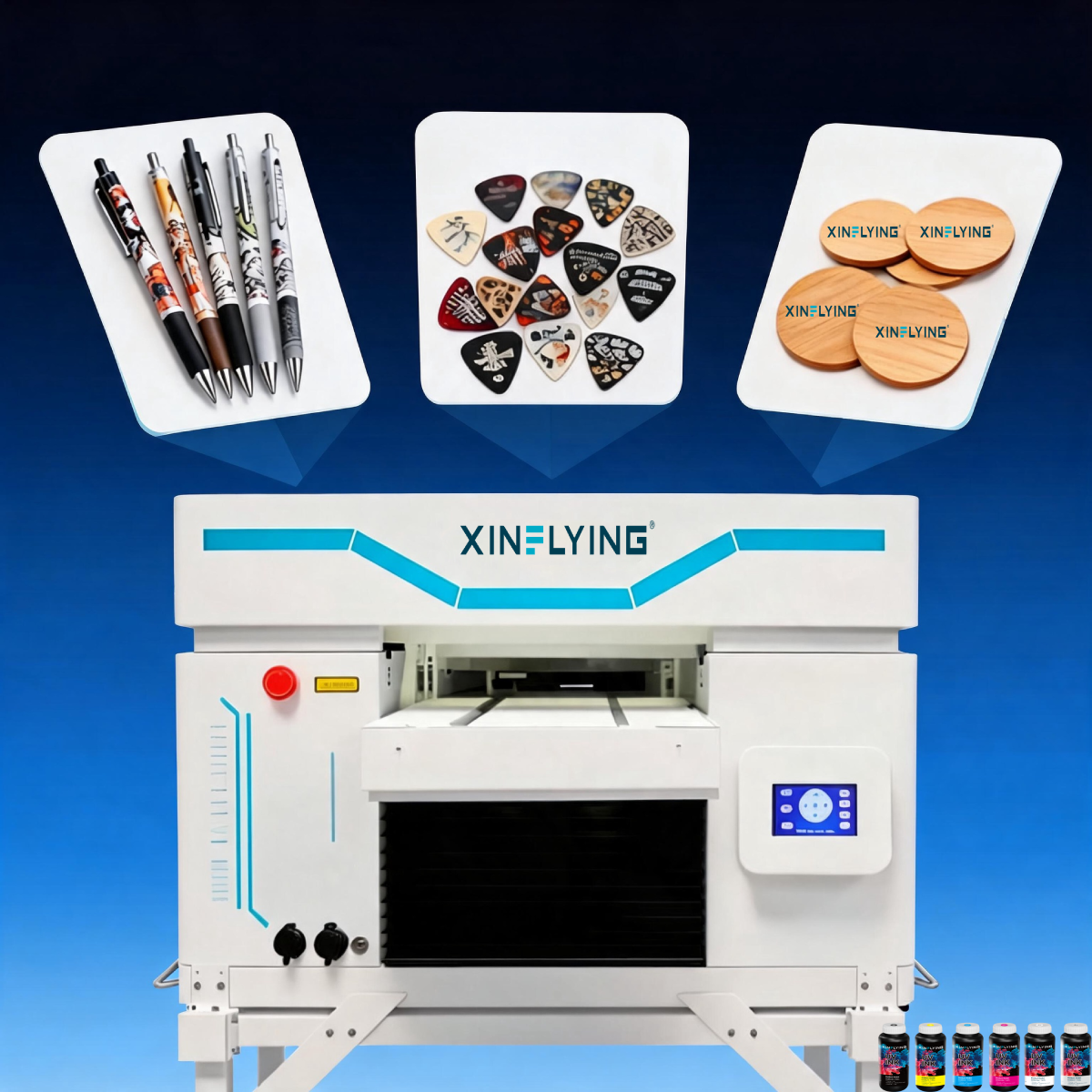

Xinflying UV Flatbed Printer Machine XF-H4060S
Print custom graphics on suitable glass, acrylic and rigid products with the 40 x 60 cm XINFLYING H4060S. Its Epson i3200U1-HD printhead, automatic height measurement and vacuum platform support flatbed work, with optional fixtures for roll media and cylindrical items.
40 x 60 cm UV flatbed printing
Epson HD printhead
Automatic height measurement + vacuum support
Print Width:
40*60cm
Print Head:
Epson i3200U1-HD
Print Speed:
6PASS:1.5㎡/h
Ink Config:
W+CMYK+V
Supporting Equipment & Consumables
Product Specifications
Explore technical specifications and performance details to find the right fit for your application and production needs.
| Parameter | XF-H4060S-1I32U1HD |
|---|---|
| Model | XF-H4060S-1I32U1HD |
| Printhead Type | 1pc I3200U1-HD |
| Printing Speed | 6PASS:1.5㎡/h |
| Printing Width | 40*60cm |
| Printing Resolution | 720*1800dpi |
| Ink Type & System | W+CMYK+V |
| Supported File Formats | TIFF/PDF/PNG... |
| Interface Type | 2 × TCP 1 Gigabit Ethernet Ports |
| RIP Software RIP | SPIDE RIP |
| Operating System | Windows 10；Windows 11 |
| Temperature / Humidity | 25℃-35℃ / 45%-65%RH |
| Rated Power | 1.5KW |
| Rated Voltage | 220V/110V；50HZ/60HZ |
| Rated Current | 7A/14A |
| Machine Dimensions | L950*W1130*H620mm |
| Packaging Dimensions | L1050*W1230*H700mm |
| Net Weight | 70 kg |
| Gross Weight | 100 kg |
Product Highlights
Key Features & Benefits of XF-H4060S
Build a rigid-product printing setup around a 40 x 60 cm bed, automatic height measurement and vacuum support. Add the fixtures your next application needs.
01
Custom graphics on a 40 x 60 cm bed
Print directly onto suitable rigid items with one Epson i3200U1-HD printhead and a listed resolution of 720*1800dpi. The W+CMYK+V setup brings white, color and varnish to personalized product graphics.
02
Measure material height automatically
The automatic height-measurement system checks material height during setup. This gives the operator a dedicated way to prepare for products with different profiles before printing.
03
Vacuum support with platform adjustment
The vacuum flatbed supports material positioning during printing. The platform offers a listed maximum lift of 15 cm, giving the setup an adjustable working platform for different jobs.
04
Expand with the fixtures you need
Add the optional roll media clamp or cylindrical fixture when your work calls for another format. Optional Aose vision positioning supports camera-based item location. Specify these options when requesting your setup.
BUILT FOR YOUR BUSINESS
Who Is XF-H4060S Best Suited For?
For businesses printing custom graphics on suitable rigid products, with the option to add roll-media or cylindrical fixtures as their work expands.
Personalized gift shops
Create custom graphics for suitable small rigid products, using a 40 x 60 cm flatbed format for individualized designs.
Acrylic product studios
Develop printed keychains, display pieces and decorative acrylic items with the specified white, color and varnish setup.
Woodcraft businesses
Add lettering and decorative artwork to suitable wood boards and small wooden products that fit the printing area.
Sign and display workshops
Print graphics on suitable glass, PVC board and foam board for small signs and decorative display projects.
Ceramic decoration studios
Explore decorative printing on suitable ceramic tiles and flat ceramic pieces, with the surface and print process checked for each job.
Print shops adding new formats
Start with flatbed work and discuss optional roll-media or cylindrical fixtures for compatible applications beyond flat rigid items.
Not sure which configuration fits your business?
Application ideas for rigid-product printing
Explore decorative work on suitable glass, acrylic, wood and ceramic surfaces. Keep each workpiece within the machine’s working area and match the surface preparation to the specific material.
Decorative glass pieces
Materials
Suitable flat glass surfaces
Typical Products
Decorative glass pieces · Coasters · Display items
Print Capability
Add color artwork and decorative details to compatible flat glass pieces.
Ceramic artwork
Materials
Suitable ceramic tiles · Compatible flat ceramic surfaces
Typical Products
Decorative tiles · Ceramic display pieces
Print Capability
Explore illustrated motifs and decorative artwork on suitable flat ceramic surfaces.
Acrylic accessories
Materials
Compatible acrylic
Typical Products
Keychains · Small display pieces · Personalized accessories
Print Capability
Create personalized graphics for acrylic items that fit the machine’s flatbed setup.
Wooden bookmarks and tags
Materials
Suitable wood surfaces
Typical Products
Bookmarks · Tags · Small wooden gifts
Print Capability
Print lettering and decorative motifs onto suitable small wooden items.
Decorative wood panels
Materials
Suitable wood boards
Typical Products
Decorative plaques · Branded display pieces
Print Capability
Develop custom wood-surface graphics within the available working area and fixture setup.
ENGINEERED FOR RELIABILITY
Key Hardware Features of XF-H4060S
A single HD printhead works with automatic height measurement and a vacuum flatbed. A cable carrier routes the moving carriage cables along their travel path.
Epson i3200U1-HD printhead
One Epson i3200U1-HD printhead forms the printing assembly for this configuration. It works across the 40 x 60 cm area with a listed 720*1800dpi resolution and W+CMYK+V ink setup.
Automatic height measurement
The material-height measurement system provides an automatic height check during job setup. It helps the operator prepare the print setup for workpieces with different profiles.
Vacuum flatbed platform
The perforated vacuum platform supports material holding during printing. Its drive mechanism provides up to 15 cm of platform lift for adjustment during setup.
Carriage cable carrier
The linked cable carrier routes the cables that travel with the print carriage. It keeps the moving cable path organized as the carriage moves across the printer.
Since 2010
Guangzhou · Panyu District HQ
Factory Strength
A Direct Manufacturer You Can Verify
Xinflying is a printing equipment manufacturer in Guangzhou, China, with a 20,000 m² production facility and 16+ years of engineering experience. We serve 50,000+ customers worldwide.
2010
Founded — Source Manufacturer
8
Overseas Warehouses
20,000㎡
Modern Factory Base
200+
Skilled Employees
50,000+
Global Customers Served Worldwide
After-Sales, Warranty & Technical Support
From installation to daily production, XINFLYING provides responsive technical support, training, warranty service, and spare-parts assistance worldwide.
Installation & Training
Remote setup and commissioning guidance via video call, plus hands-on operator training — your team produces correctly from day one.
Video-Call Setup
Operator Training
24/7 Technical Support
50+ engineers provide 24/7 online support for setup, maintenance, and troubleshooting.
WhatsApp · WeChat
Email & Phone
Warranty & Spare Parts
A 12-month limited warranty from shipment covers manufacturing defects in eligible core components. Technical support continues after the warranty expires.
12-Month Warranty
After-Warranty Service
8 Overseas Warehouses
Our 8 overseas warehouses in the US, Brazil, and Mexico offer faster access to parts and consumables—reducing downtime and shipping costs. Contact us for availability.
Local Parts Stock
Fast Delivery
Warranty exclusions apply to consumables, wear parts, improper operation, incompatible consumables, and unauthorized repairs.
Certificates & Patents
Certified to international safety and quality standards — full-size copies are available on request.
CE Safety Compliance
Low Voltage Directive
CE EMC Compliance
Electromagnetic Compatibility
FCC Certificates
FCC Part 15 Subpart B
RoHS Compliance
Hazardous Substance Restrictions
Textile Printing Patent
Chinese Invention Patent
Precision Positioning Patent
Chinese Utility Model Patent
Compliance documents apply to the listed models. Patents relate to specific technologies.
Frequently Asked Questions
What printhead, working area and speed are specified?
This configuration uses one i3200U1-HD printhead with a 40*60cm printing area. The listed resolution is 720*1800dpi and the printing speed is 6PASS:1.5㎡/h. Confirm the full model XF-H4060S-1I32U1HD in your quotation.
Are roll-media, cylindrical and vision options included?
The roll media clamp and cylindrical fixture are optional. The technical document also lists vision positioning as optional. Tell XINFLYING which formats and positioning functions you need so the quotation identifies the correct fixtures and software setup.
Does the 15 cm lift define the maximum printable object height?
The brochure specifies a maximum platform lift of 15 cm. The usable object height also depends on the printhead gap, workpiece shape and any fixture. Share the exact item dimensions so the working setup can be checked.
Which materials are listed for flatbed printing?
The brochure lists glass, acrylic, wood board, ceramic tile, metal sheet, PVC board, foam board and business cards. The exact coating, surface preparation and workpiece geometry affect the setup. Send a sample and artwork to discuss the appropriate process.
Which features support daily setup and ink checks?
Automatic height measurement and vacuum support help with material setup. The machine also lists an ink-shortage alarm and an integrated touchscreen control panel. Follow the supplied operating instructions for replenishment and routine checks.
Still have questions about the XF-H4060S ?
Get a quote, expert product advice, or a free sample print—our technical sales team replies within 24 hours.
H4060S UV flatbed printing for personalized products
See the H4060S product-printing workflow and discuss the setup for your material. Share your artwork, workpiece size and required options with XINFLYING to plan a suitable flatbed, roll-media or cylindrical application.
