Gift Boxes & Packaging
Materials
Compatible packaging surfaces
Typical Products
Gift boxes · Presentation boxes · Branded packs
Print Capability
Add metallic logos and decorative transfer labels to packaging.
MODEL: XF-600ST

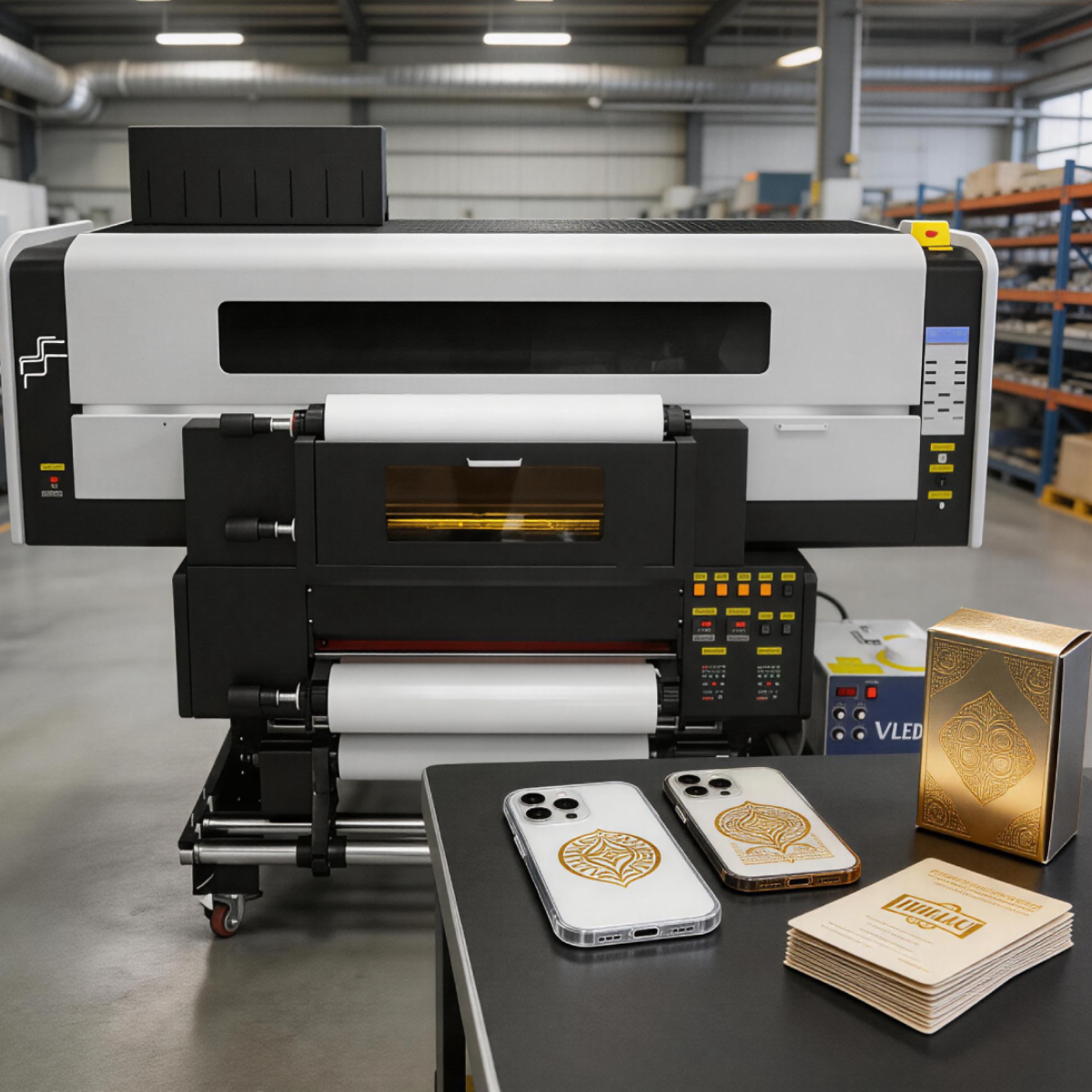

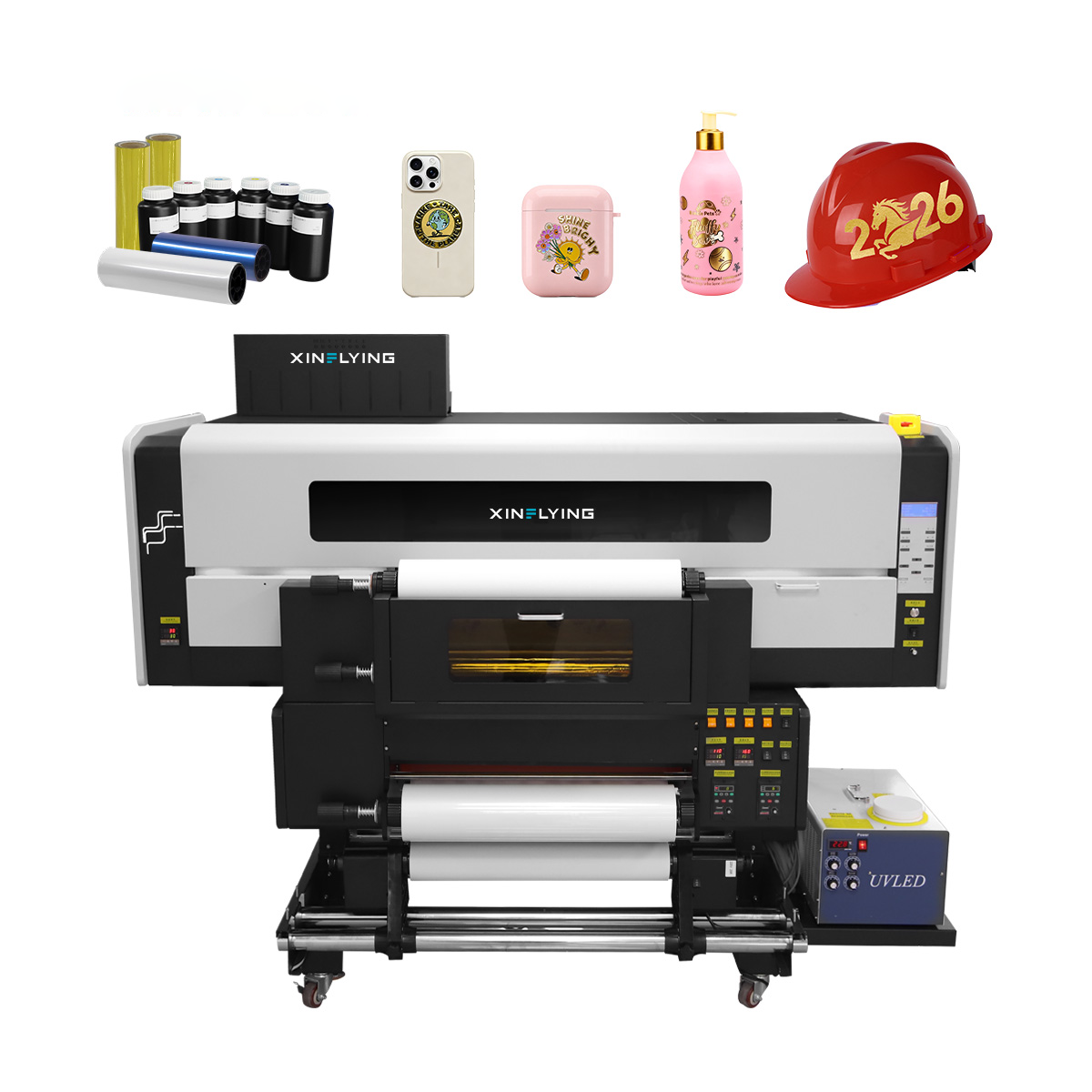

Xinflying UV Printer Machine XF-600ST
24″ Gold Stamping Solution UV DTF Printer XF-600ST combines UV DTF printing with premium gold foil stamping effects for luxury packaging, labels, gifts and branding applications. Supports white ink, varnish and metallic finish printing with high precision and vibrant output.
All-in-One Foil Transfer
Metallic 3D Label Effects
Integrated Head Maintenance
Print Width:
24" (60 cm)
Print Head:
Epson i3200-U1
Print Speed:
5.5 m²/h (6-pass standard)
Ink Config:
W + CMYK + V + Foil Varnish
Supporting Equipment & Consumables
Product Specifications
Explore technical specifications and performance details to find the right fit for your application and production needs.
| Parameter | XF-600ST |
|---|---|
| Model | XF-600ST |
| Print Heads | 4pcs Epson i3200-U1 |
| Print Width | 24”(60CM) |
| Fastest Print Speed | 6PASS:8㎡/h |
| Standard Print Speed | 6PASS:5.5㎡/h |
| DPI | 720*1800 |
| Temperature/Humidity | 20-30℃/45-65%RH |
| Media Transmission | Media feeding system |
| Ink Types | UV ink |
| Printing Color | W + CMYK + V + Foil Vanish |
| RIP Software | XF SmartPrint |
| Power | 4KW |
| Power Supply/Voltage | 220V，11.3A，50HZ |
| Machine Size | L1850*W990*H1610mm |
| Packaging Size | L2140*W1160*H1630mm |
| Net Weight | 400KG |
| Gross Weight | 465KG |
Product Highlights
Key Features & Benefits of XF-600ST
Give custom logos and labels a metallic finish with an integrated UV DTF foil transfer workflow, raised visual detail, and a 60 cm print width.
01
UV Printing & Foil Transfer in One Machine
Bring UV foil transfer and release-liner foil printing into one integrated machine. The XF-600ST combines these functions with one-click production control for custom label work.
02
Metallic Logos with Raised Detail
Make brand marks stand out with metallic foil decoration and a raised, three-dimensional appearance. Create personalized logos and labels for product decoration, gifts, and packaging.
03
Integrated Care for Everyday Head Maintenance
An integrated nozzle maintenance station keeps routine printhead cleaning and care in one place. Its accessible layout makes daily maintenance more convenient for operators.
04
60 cm Width, Four i3200-U1 Printheads
Lay out multiple logos and labels across a 60 cm print width. Four Epson i3200-U1 printheads support a listed standard speed of 5.5 m²/h in 6-pass mode.
BUILT FOR YOUR BUSINESS
Who Is XF-600ST Best Suited For?
Built for businesses adding metallic logos, personalized labels, and decorative transfers to products and packaging, from short-run gift projects to custom branding services.
Label & Logo Producers
Produce personalized UV DTF transfer labels with metallic decoration and raised detail for product branding.
Packaging Decorators
Add metallic logos and decorative labels to suitable gift boxes, presentation packs, and branded packaging.
Personalized Gift Businesses
Offer decorative transfers for giftware made from compatible glass, ceramic, plastic, metal, or wood.
Promotional Product Suppliers
Develop branded logos and campaign graphics for customer merchandise, using sample tests to confirm each product surface.
Branding & Design Studios
Turn logo and packaging concepts into metallic decoration samples that clients can see and handle.
Print Shops Adding UV Foil
Add a 60 cm UV DTF foil printing workflow for customers seeking metallic labels and custom product decoration.
Not sure which configuration fits your business?
UV DTF Foil Transfer Applications for Products & Packaging
Create metallic logos and decorative transfer labels for plastic, metal, glass, ceramic, wood, and packaging applications. Designs are printed as transfers and applied to compatible surfaces; confirm adhesion and finish with your own product samples.
Glass Bottles & Containers
Materials
Glass
Typical Products
Bottles · Jars · Glass giftware
Print Capability
Apply logo and ornamental transfers to suitable glass surfaces.
Ceramic Gifts & Drinkware
Materials
Ceramic
Typical Products
Mugs · Ceramic gifts · Decorative items
Print Capability
Personalize compatible ceramic surfaces with decorative transfer graphics.
Plastic Accessories
Materials
Compatible plastics
Typical Products
Stationery · Cases · Promotional accessories
Print Capability
Create custom logo transfers for selected plastic products.
Metal Housings & Products
Materials
Metal · Compatible coated metal
Typical Products
Product housings · Metal accessories · Branded items
Print Capability
Apply metallic branding and decorative labels to suitable metal finishes.
Wood · Compatible finished wood
Materials
Wood · Compatible finished wood
Typical Products
Picture frames · Wooden gifts · Decorative pieces
Print Capability
Add personalized artwork and logos to selected wooden products.
ENGINEERED FOR RELIABILITY
Key Hardware Features of XF-600ST
Four Epson i3200-U1 printheads, an integrated maintenance station, ink supply bottles, and a foil roller assembly support the XF-600ST UV DTF foil transfer workflow.
Epson i3200-U1 Printheads
Four Epson i3200-U1 printheads form the XF-600ST printing configuration. The listed ink setup combines white, CMYK, varnish, and foil varnish for UV DTF foil transfer work.
Integrated Nozzle Maintenance Station
The integrated maintenance station brings the printhead capping and care area together. It gives operators a defined location for routine nozzle cleaning and daily maintenance.
Multi-Channel Ink Supply
Ink supply bottles are grouped on the side of the machine for access during operation and servicing. This arrangement serves the listed white, color, varnish, and foil varnish configuration.
Foil & Film Roller Assembly
The machine includes a roller assembly for foil and film handling as part of its integrated transfer workflow. The close-up shows the foil roll and adjacent film path.
Since 2010
Guangzhou · Panyu District HQ
Factory Strength
A Direct Manufacturer You Can Verify
Xinflying is a printing equipment manufacturer in Guangzhou, China, with a 20,000 m² production facility and 16+ years of engineering experience. We serve 50,000+ customers worldwide.
2010
Founded — Source Manufacturer
8
Overseas Warehouses
20,000㎡
Modern Factory Base
200+
Skilled Employees
50,000+
Global Customers Served Worldwide
After-Sales, Warranty & Technical Support
From installation to daily production, XINFLYING provides responsive technical support, training, warranty service, and spare-parts assistance worldwide.
Installation & Training
Remote setup and commissioning guidance via video call, plus hands-on operator training — your team produces correctly from day one.
Video-Call Setup
Operator Training
24/7 Technical Support
50+ engineers provide 24/7 online support for setup, maintenance, and troubleshooting.
WhatsApp · WeChat
Email & Phone
Warranty & Spare Parts
A 12-month limited warranty from shipment covers manufacturing defects in eligible core components. Technical support continues after the warranty expires.
12-Month Warranty
After-Warranty Service
8 Overseas Warehouses
Our 8 overseas warehouses in the US, Brazil, and Mexico offer faster access to parts and consumables—reducing downtime and shipping costs. Contact us for availability.
Local Parts Stock
Fast Delivery
Warranty exclusions apply to consumables, wear parts, improper operation, incompatible consumables, and unauthorized repairs.
Certificates & Patents
Certified to international safety and quality standards — full-size copies are available on request.
CE Safety Compliance
Low Voltage Directive
CE EMC Compliance
Electromagnetic Compatibility
FCC Certificates
FCC Part 15 Subpart B
RoHS Compliance
Hazardous Substance Restrictions
Textile Printing Patent
Chinese Invention Patent
Precision Positioning Patent
Chinese Utility Model Patent
Compliance documents apply to the listed models. Patents relate to specific technologies.
Frequently Asked Questions
What is the XF-600ST UV DTF foil stamping printer used for?
The XF-600ST produces UV foil transfer graphics for personalized labels, logos, and decorative branding on compatible plastic, metal, glass, ceramic, wood, and packaging surfaces. Graphics are printed as transfers and then applied to the product surface.
Which printheads and inks does the XF-600ST use?
The specified configuration is four Epson i3200-U1 printheads with UV ink. The printing-color setup is white, CMYK, varnish, and foil varnish. Use the ink, film, and foil consumables confirmed for this machine and the intended transfer process.
What are the print width and production speeds?
The print width is 24 inches (60 cm). In 6-pass mode, the specified standard speed is 5.5 m²/h and the fastest speed is 8 m²/h.
How do I check whether a surface is suitable for UV DTF foil transfers?
Surface materials, coatings, and finishes can affect adhesion and appearance. Send your actual product for sample evaluation, and share the required finish and end-use conditions so the transfer process can be checked before production.
What should I send when requesting a UV DTF foil printer quote?
Share your logo or artwork, target material, transfer size, preferred foil effect, and expected output. Include photos or samples of the product surface so the team can recommend an appropriate machine and consumable setup.
Still have questions about the XF-600ST ?
Get a quote, expert product advice, or a free sample print—our technical sales team replies within 24 hours.
XF-600ST UV DTF Foil Printing & Transfer Overview
Explore the XF-600ST UV DTF foil printing workflow and discuss metallic label and product decoration applications with our team.
