MODEL: XF-420ST

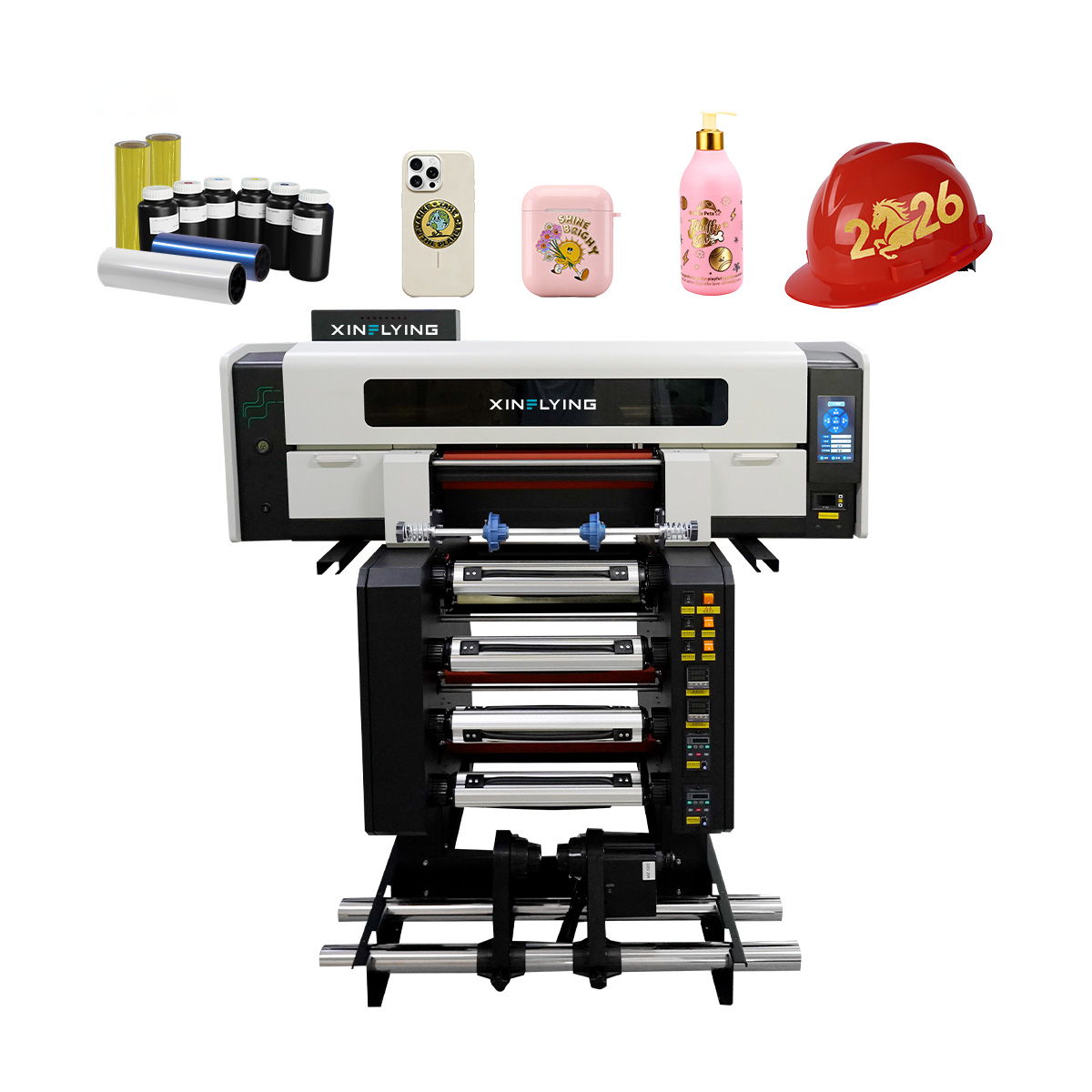

Xinflying UV Printer Machine XF-420ST
The XINFLYING XF-420ST turns custom logos and decorative artwork into metallic UV DTF transfer labels with foil shine and raised detail. This 420 mm all-in-one printer combines four Epson I1600-U1 printheads with automatic waste removal, foil stamping, and lamination, bringing printing and finishing into one workflow.
Print, Foil & Laminate
One-Touch Production
Metallic Shine & 3D Detail
Print Width:
16.5” / 42 cm
Print Head:
Epson I1600-U1
Print Speed:
Up to 6.5 m²/h (8-pass)
Ink Config:
W + CMYK + V + Foil Varnish
Supporting Equipment & Consumables
Product Specifications
Explore technical specifications and performance details to find the right fit for your application and production needs.
| Model | 420ST |
| Print Heads | 4pcs Epson i1600-U1 |
| Fastest Print Speed | 8PASS: 6.5㎡/h |
| Standard Print Speed | 8PASS: 3.5㎡/h |
| Print Width | 16.5”(42CM) |
| DPI | 720*1200 |
| Temperature / Humidity | 20℃-32℃；40%-60%RH |
| Media Type | AB Film, Waste Disposal Film, Hot Stamping Paper |
| Media Transmission | Rubber Roller Method |
| Ink Types | UV ink |
| Color | W+CMYK+V+Foil Vanish |
| RIP Software | Standard with RIIN or Printfactory |
| Power | 3KW |
| Power Supply/Voltage | 220V/110V，14.36A /27.73A，50HZ/60HZ |
| Machine Size | L1460*W850*H1320mm |
| Packaging Size | L1480*W1000*H700mm |
| Net Weight | 212KG |
| Gross Weight | 244KG |
Product Highlights
Key Features & Benefits of XF-420ST
Bring metallic shine and raised detail to custom labels, with printing, waste removal, foil stamping, and lamination in one machine.
01
Print, Foil & Laminate in One
Bring UV printing, automatic waste removal, foil stamping, and lamination into one workflow. Produce custom foil transfer labels without moving printed film between separate finishing stations.
02
Metallic Shine. Raised Detail.
Give logos and decorative graphics a foil finish with a dimensional look. Turn everyday packaging, bottles, and branded products into designs that catch the eye and invite a closer look.
03
One-Touch Production Control
Start the integrated workflow with one-touch operation. A 7-inch touchscreen, dedicated heating controls, and adjustable waste-removal and lamination speeds put key production functions within reach.
04
Easier Daily Printhead Care
An integrated printhead maintenance station keeps routine cleaning close to the printing system. Keep everyday nozzle care within the production setup, with cleaning access ready between printing jobs.
BUILT FOR YOUR BUSINESS
Who Is XF-420ST Best Suited For?
For print businesses and brands that want metallic logos, raised label details, and a single production workflow for custom UV DTF foil transfers.
UV DTF Print Shops
Add foil-finished transfer labels to your print services, with printing, waste removal, foil stamping, and lamination handled in one integrated machine.
Packaging & Label Producers
Create metallic logos and decorative transfer graphics for gift boxes, product packaging, and branded presentation projects.
Cosmetics & Personal-Care Brands
Bring foil details to suitable bottles and containers, giving product names, logos, and decorative graphics a more distinctive shelf presence.
Drinkware & Gift Businesses
Personalize compatible bottles, glassware, and gift products with metallic artwork and raised label details for branded collections and special occasions.
Electronics & Accessory Decorators
Develop foil logo graphics for suitable device covers, accessories, and product surfaces, with detailed artwork that gives small items a stronger visual identity.
Promotional Product Suppliers
Offer custom foil graphics for business gifts, promotional items, and branded packaging, using sample tests to match the transfer system to each product.
Not sure which configuration fits your business?
Xinflying UV Foil Stamping Printer Application
Create foil-finished transfer labels for suitable plastic, metal, glass, ceramic, wood, and packaging surfaces. Match the film, foil, and varnish system to your product, then confirm the finish with a sample.
Electronics & Accessories
Materials
Metal · Compatible plastics
Typical Products
Device covers · Accessory housings · Branded accessories
Print Capability
Foil graphics and logo accents for suitable product surfaces
Cosmetic Packaging
Materials
Glass · Compatible plastics
Typical Products
Cosmetic bottles · Personal-care containers · Decorative packaging
Print Capability
Metallic branding and fine decorative details for product packaging
Bottles & Drinkware
Materials
Glass · Suitable metal surfaces
Typical Products
Glass bottles · Drinkware · Promotional bottles
Print Capability
Foil logos and transfer graphics for exterior bottle decoration
Personalized Stationery
Materials
Compatible plastics · Suitable coated surfaces
Typical Products
Stationery cases · Decorative covers · Personalized accessories
Print Capability
Custom logos, motifs, and label graphics for everyday branded items
Decorative Covers & Panels
Materials
Suitable packaging surfaces · Compatible plastics
Typical Products
Decorative covers · Presentation panels · Gift accessories
Print Capability
Foil-accented decorative designs for suitable flat exterior surfaces
ENGINEERED FOR RELIABILITY
Key Hardware Features of XF-420ST
Four Epson I1600-U1 printheads, rubber-roller media handling, ink alerts, and powered take-up support the XF-420ST’s integrated foil-label production workflow.
Precision Print Platform
The textured vacuum platform holds film securely in place, reducing shifting and lifting for accurate registration and consistent results across multiple passes.
Multi-Printhead Module
Precision-aligned printheads deliver sharp detail and crisp small text, producing high-resolution designs for UV DTF printing and UV foil stamping applications.
Ink Cartridge System
Independent 5-color ink channels help prevent cross-contamination and maintain steady ink delivery, keeping colors clean, vibrant, and consistent from batch to batch.
Automatic Rewind Motor System
A dedicated motor automatically winds finished film during printing, reducing manual handling and keeping material collection smooth and efficient throughout longer production runs.
Since 2010
Guangzhou · Panyu District HQ
Factory Strength
A Direct Manufacturer You Can Verify
Xinflying is a printing equipment manufacturer in Guangzhou, China, with a 20,000 m² production facility and 16+ years of engineering experience. We serve 50,000+ customers worldwide.
2010
Founded — Source Manufacturer
8
Overseas Warehouses
20,000㎡
Modern Factory Base
200+
Skilled Employees
50,000+
Global Customers Served Worldwide
After-Sales, Warranty & Technical Support
From installation to daily production, XINFLYING provides responsive technical support, training, warranty service, and spare-parts assistance worldwide.
Installation & Training
Remote setup and commissioning guidance via video call, plus hands-on operator training — your team produces correctly from day one.
Video-Call Setup
Operator Training
24/7 Technical Support
50+ engineers provide 24/7 online support for setup, maintenance, and troubleshooting.
WhatsApp · WeChat
Email & Phone
Warranty & Spare Parts
A 12-month limited warranty from shipment covers manufacturing defects in eligible core components. Technical support continues after the warranty expires.
12-Month Warranty
After-Warranty Service
8 Overseas Warehouses
Our 8 overseas warehouses in the US, Brazil, and Mexico offer faster access to parts and consumables—reducing downtime and shipping costs. Contact us for availability.
Local Parts Stock
Fast Delivery
Warranty exclusions apply to consumables, wear parts, improper operation, incompatible consumables, and unauthorized repairs.
Certificates & Patents
Certified to international safety and quality standards — full-size copies are available on request.
CE Safety Compliance
Low Voltage Directive
CE EMC Compliance
Electromagnetic Compatibility
FCC Certificates
FCC Part 15 Subpart B
RoHS Compliance
Hazardous Substance Restrictions
Textile Printing Patent
Chinese Invention Patent
Precision Positioning Patent
Chinese Utility Model Patent
Compliance documents apply to the listed models. Patents relate to specific technologies.
Frequently Asked Questions
1. What printheads and printing width does the 420ST have?
The Xinflying UV Printer Machine-420ST is equipped with 4x Epson i1600-U1 printheads and supports a printing width of 16.5″. This multi-head setup delivers fast, high-resolution output at 3.5 m²/h (8-pass), making it well-suited for label, packaging, and custom product production.
2. What does "all-in-one" mean for this printer?
The 420ST integrates UV printing, gold/foil stamping, waste film removal, and laminating into a single automated workflow. This eliminates the need for separate machines or manual handoffs between steps, saving space and significantly speeding up production of metallic-effect labels and transfers.
3. How does the printer ensure accurate alignment during the foil stamping process?
The 420ST uses a vacuum suction platform combined with an automatic film peeling system and printhead anti-collision protection. Together, these features keep materials firmly in place and precisely registered throughout printing and foil transfer, reducing misalignment and material waste.
4. Is this printer easy to operate for daily production?
Yes. The 420ST features a 7-inch touch screen with one-key/one-button operation, simplifying setup and daily use. Operators can start jobs quickly without complex manual adjustments, making it accessible for both small studios and production teams.
5. How does the printer achieve strong foil adhesion and durable results?
The 420ST uses air-cooled UV curing lamps together with an intelligent heated base plate to improve foil bonding during the stamping process. This combination ensures the gold/metallic finish adheres securely and holds up well over time, even on labels, packaging, and craft products subject to regular handling.
Still have questions about the XF-420ST ?
Get a quote, expert product advice, or a free sample print—our technical sales team replies within 24 hours.
Foil Stamping & UV DTF in One Machine
Explore the XF-420ST’s integrated workflow for metallic UV DTF transfer labels. Share your material, logo artwork, and desired foil finish with XINFLYING to discuss a suitable production setup.
