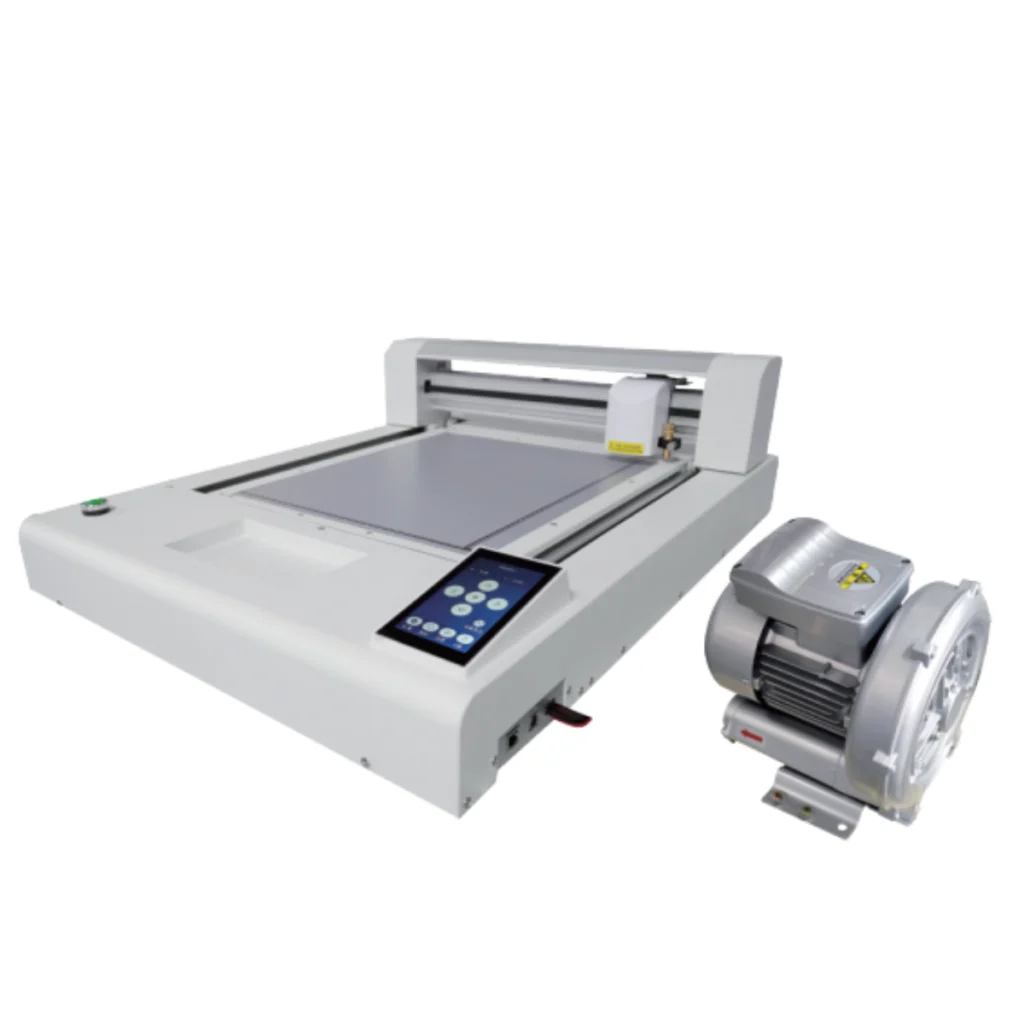

Xinflying UV Cutting Plotter-P4030C
UV DTF Printer
Cutting Plotter
- Cutting Speed: 1mm/s~800mm/s
- Cutting Thickness: 1.2mm maximum
- Cutting Pressure: 1000g
- Cutting Accuracy: ±0.15mm
- Material Fixing Method: Vacuum Adsorption
- Interface: USB; USB Drive Offline Operation; Ethernet Port
- Rated Voltage/Power: 220V AC ±10%, 50Hz
- Cutting Area: 420*300mm
- Overall Dimensions: 77.5*59*21.5cm (Platform Height:8.5cm)
- Air Pump Voltage: 220V; 0.37kW
- Command Set: HPGL Compatible Format
- Positioning Method: Camera Positioning System
- Max. Cut Diameter: 1mm minimum
- Repeat Accuracy: ±0.05mm
- Vinyl Cutter Package Size: L95*W74*H40cm
- Air Pump Package Size: L34*W34*H34cm
- Vinyl Cutter Gross Weight: 34.4kg
- Air Pump Gross Weight: 12.4kg
