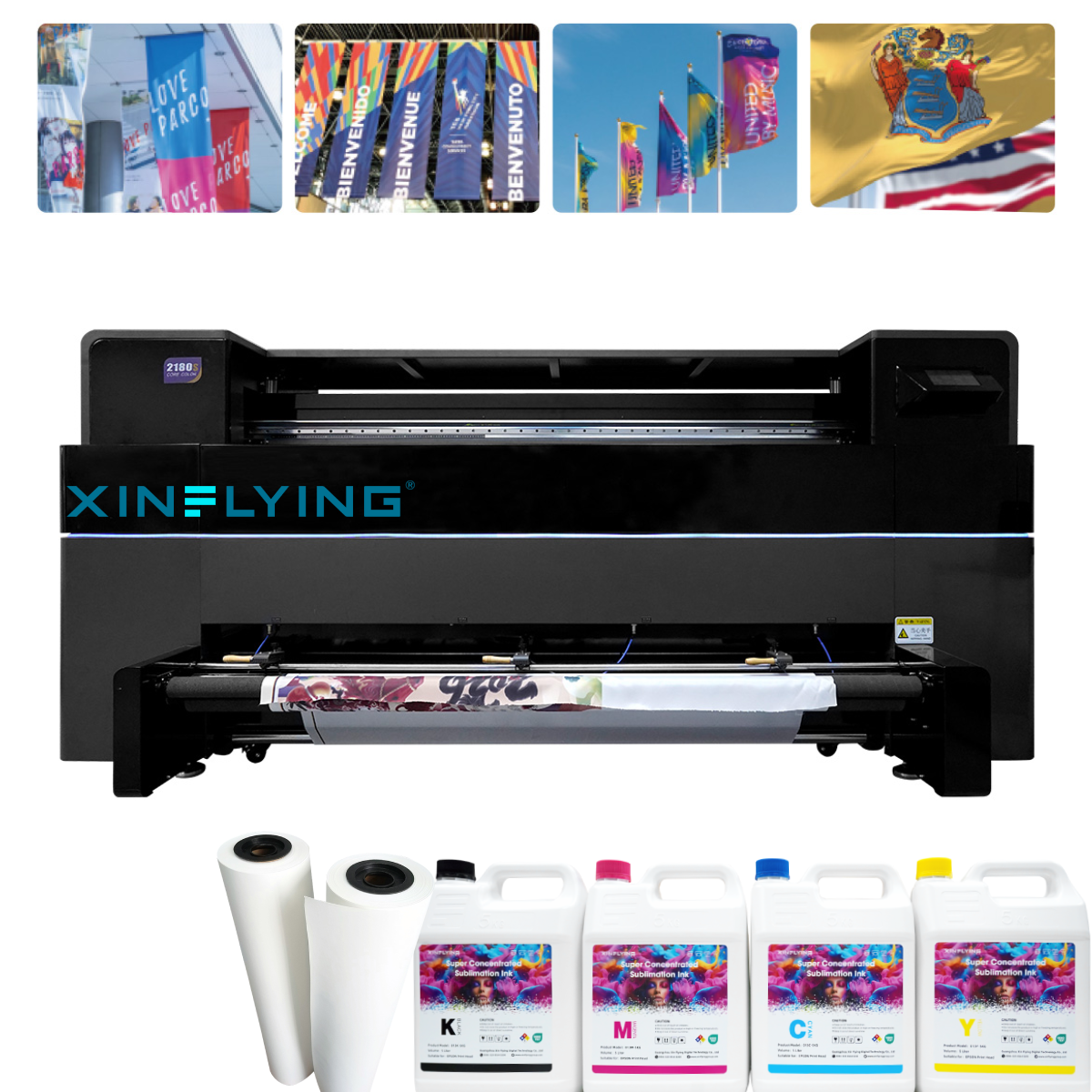

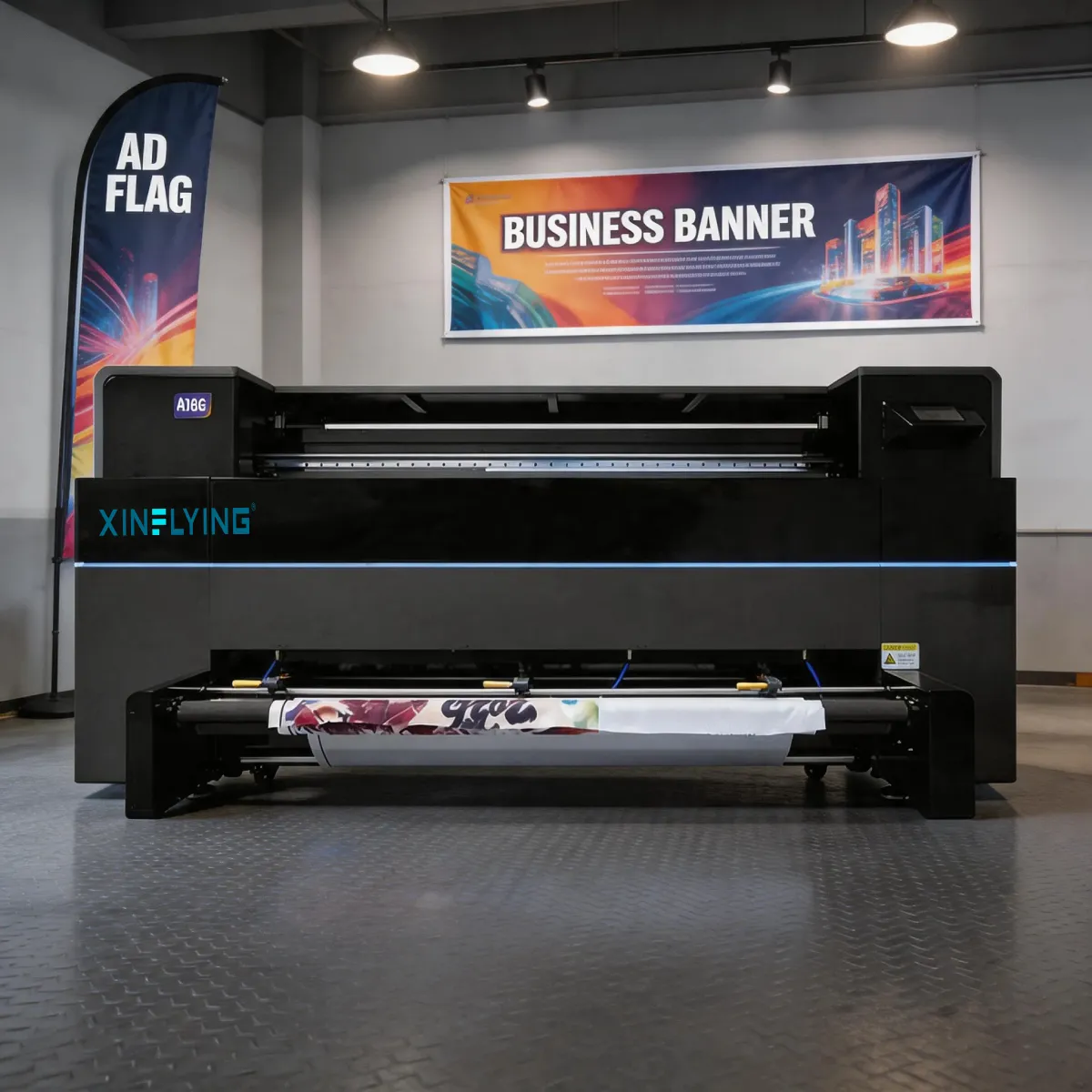

Xinflying Large Format Dye Sublimation Printer-2180A
Technical Specifications:
Professional Features
Stable & Reliable Control System
Industrial-grade wiring and a robust control board ensure stable signal transmission and minimal interference, keeping the XF-2180A running reliably through long, high-load production cycles with reduced downtime.
Precision Linear Rail
High-precision linear guide rails keep the print carriage moving smoothly and accurately across the full 79" width, delivering consistent alignment, sharp image registration, and repeatable accuracy pass after pass — critical for large-format textile production.
8-Head High-Density Printhead Array
Eight Epson i1600-A1 printheads are arranged in a high-density array to maximize coverage per pass, significantly boosting production speed while maintaining vibrant, consistent color output across large-format prints for soft signage and wide-format textiles.
Intelligent Touch Screen Control
A full-color touch screen interface gives operators real-time visibility into print status, ink levels, temperature, and machine diagnostics, simplifying daily operation and helping reduce training time for teams managing high-volume, large-format production.
Industrial Dye Sublimation Printer for Flags | Xinflying 2180A
Technical Specifications
| Model | 2180A |
| Printing Width | 205cm |
| Print Head | 8pcs Epson i1600-A1 |
| Ink | Sublimation Ink |
| Ink Color | CMYK |
| Printing Speed | 4PASS:55㎡/h ; 3PASS:75㎡/h |
| Print Media | Banner Fabric, Scroll Fabric, Stretch Fabric, etc. |
| Data Interface | High-Speed USB 3.0, Gigabit Ethernet Port |
| Input | 220V; 50HZ |
| Power | 2 KW-6.5KW |
| Temperature/ Humidity | 20-28℃；40%-60% |
| Machine Size | L3220*W1200*H1440 mm |
| Packing Size | L3300*W1050*H1620 mm |
| Net Weight | 900 KG |
| Gross Weight | 1020 KG |
Xinflying Large Format Dye Sublimation Printer Applications
