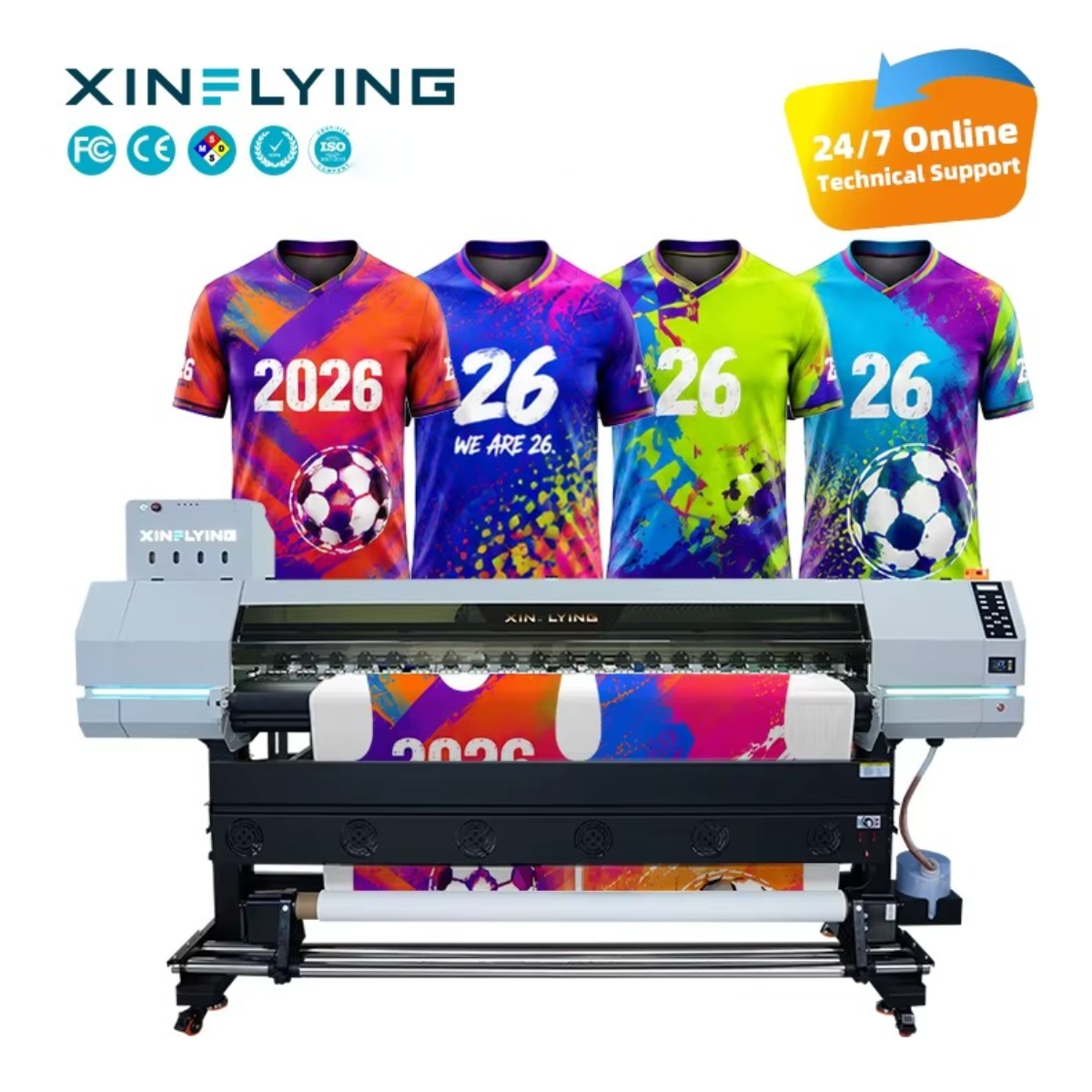

Xinflying Dye Sublimation Printer-H1802X
Technical Specifications:
Professional Features
Imported Mute Rail
Equipped with imported mute rail technology, the printer carriage moves silently and smoothly along the track, significantly reducing operational noise while maintaining stable, high-precision motion — creating a quieter, more comfortable working environment for extended production runs.
Roll-to-Roll Feeding System
The automated roll-to-roll feeding mechanism maintains consistent tension and smooth fabric transport across the full 71" print width, reducing wrinkles, misalignment, and material waste during long, continuous print runs.
Ink Cartridge System
A large-capacity bulk ink supply system minimizes refill interruptions and downtime, supporting continuous, uninterrupted printing for businesses handling high-volume production orders without sacrificing consistency or output quality.
High-Precision Printheads
Two Epson i3200-A1 printheads deliver sharp detail and accurate color reproduction, striking a strong balance between print quality and efficient production speed for everyday dye sublimation printing needs.
Compact Dye Sublimation Printer for Small Business | Xinflying-H1802X
Technical Specifications
| Model | H1802X |
| Print Heads | 2pcs Epson i3200-A1 |
| Print Width | 180 cm |
| Print Speed | 4PASS: 52m²/h |
| Color | CMYK+CMYK |
| Ink | Sublimation ink |
| Voltage | AC 220V / 110V(±5%) |
| Power | 3500W |
| Temperature/ Humidity | 20°C-35°C; 45%-65%RH |
| Machine Size | L3000*W880*H1630mm |
| Package Size | L3070*W880*H850mm |
| Net Weight | 265KG |
| Gross Weight | 325KG |
Xinflying Dye Sublimation Printer Applications
