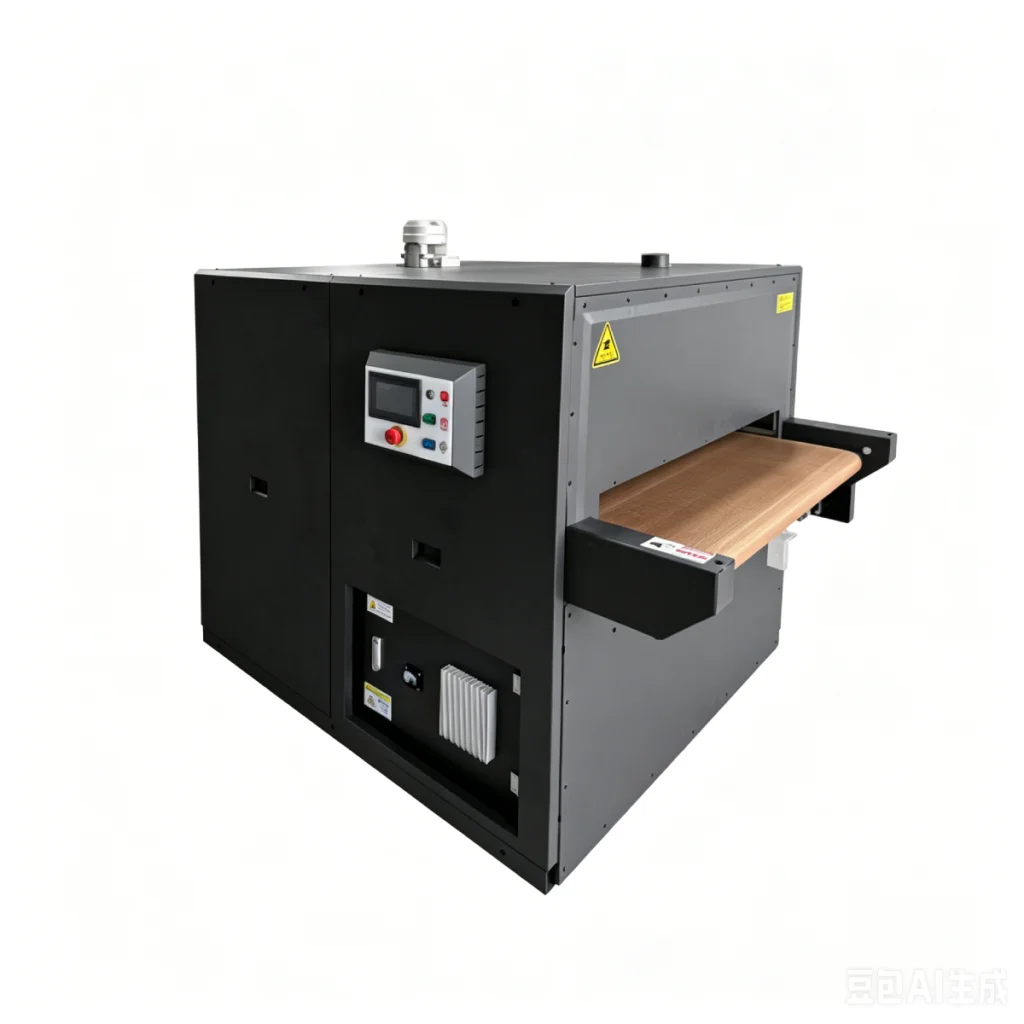

Xinflying DTG Tunnel Dryer-900

Equipment Parameter:

Box Material：Painted steel plate
Conveyor Belt System：PTFE Mesh Belt
Operating System：LCD displays human-machine interface
Heating System：Stainless steel heating rod
Hot Air Circulation：High-speed hot air circulation
Insulation System：700 ℃ insulation material
Exhaust Device：High temperature resistant exhaust fan
Tray Size：2150mm*900mm
Effective Drying Area：1200mm*900mm
Power/Voltage：9.8KW; 380V/50HZ & 220V/50HZ
G.W/N.W：<400KG；<350KG
Package Size：L223*W1408H165cm
Dimensions：2150*1180*1237mm
Max Temperature：0-180℃
Drying Time Set：0-999S
Heating Time of 150℃：15 min
Oil Fume Filter：Filter type(consumables)(optional parts)
