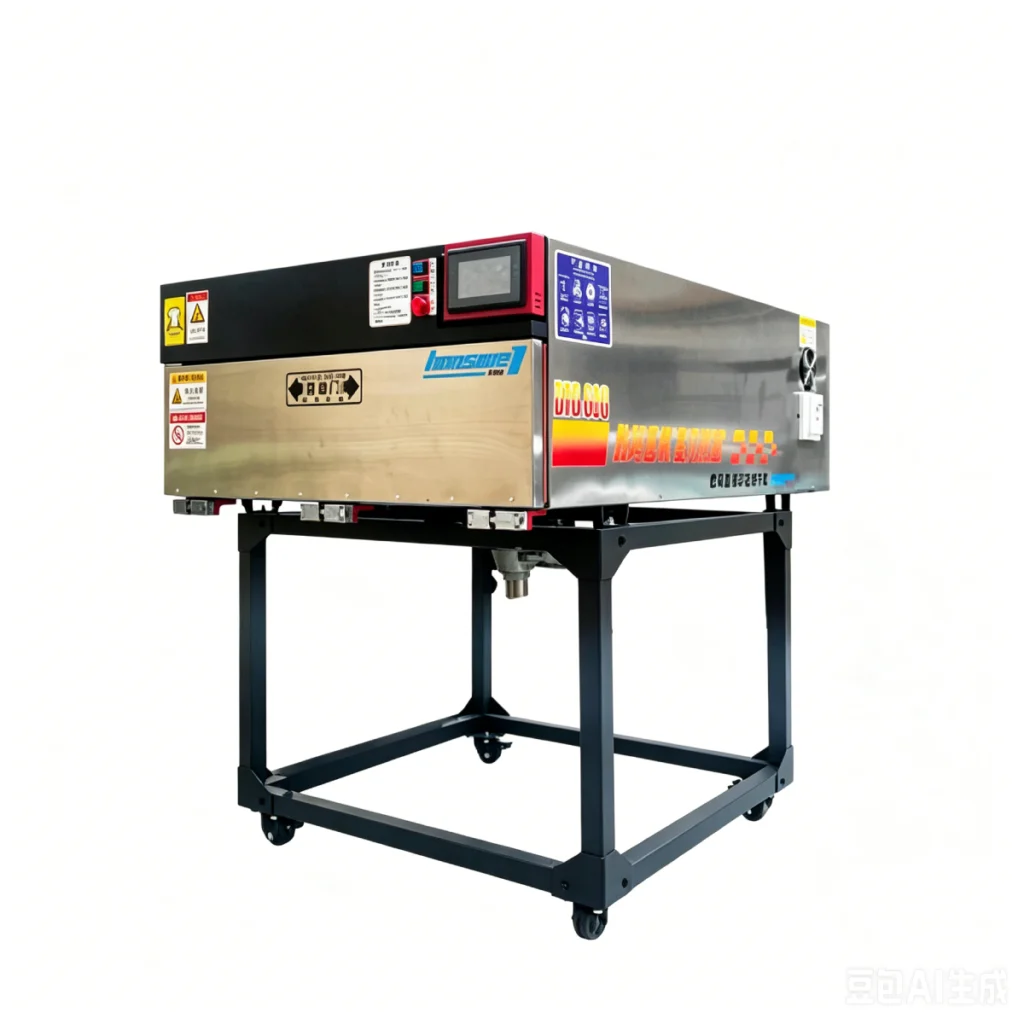

Xinflying DTG Dryer-600
Equipment Parameter:
Dimensions：1240*850*440mm
Cabinet Material：304 stainless steel
Drying Drawer：Automated Extendable and Retractable Drawers
Operating System：LCD Human-Machine Interface
Heating System：Jewel-grade Carbon Fiber Infrared Tubes
Hot Air Circulation：Dual Turbo Quiet Fans with Large Airflow Capacity
Insulation System：Aerospace-grade High-Temperature Thermal Insulation Materials
Waste Disposal Unit：High-Temperature-resistant Powerful Exhaust Fan
Drying Grid Dimensions：Fixed Pattern-cut Piece
Drying Grid: 600mm x 600mm；Removable Garment Drying Grid: 500mm x 400mm
Power Consumption：3.8 KW
Suitable Voltage：220V / 50Hz
Recommended Cable：16A, National Standard 2.5 Square Meters Cable
Installation Bracket：Steel Profile (Standard Configuration)
Eco-friendly Device：Centrifugal Water Circulation Oil Mist Separator (Optional)
