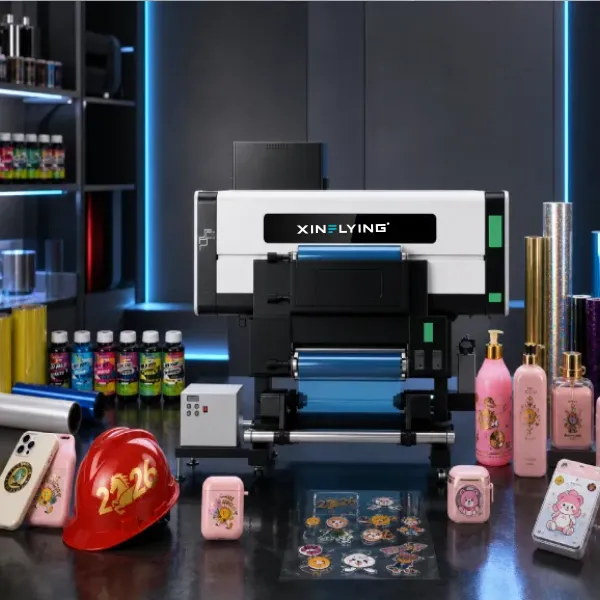

Imprimante UV Xinflying - 600ST

24″ Gold Stamping Solution UV DTF Printer XF-600ST combines UV DTF printing with premium gold foil stamping effects for luxury packaging, labels, gifts and branding applications. Supports white ink, varnish and metallic finish printing with high precision and vibrant output.

Caractéristiques techniques :

Print Width: 24″
Print Speed: 6Pass: 5.5m²/h
Tête d'impression : 4 pièces Epson i3200-U1
Dimension: L1850*W990*H1610mm
Obtenir un devis gratuit
Télécharger le fichier

Fonctionnalités professionnelles

plateforme d'impression

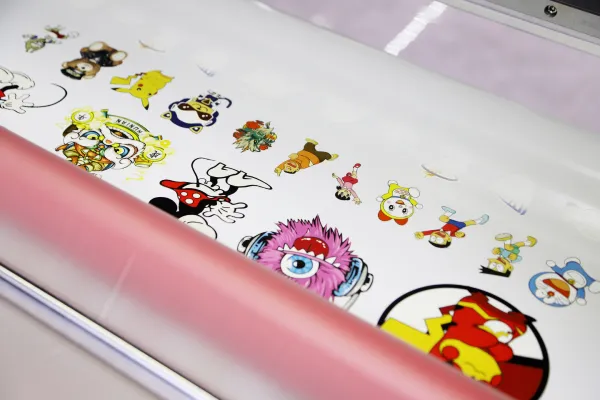

Plateforme d'impression

The 600ST features a stable vacuum-suction print platform that holds film and foil materials firmly in place during printing, preventing shifting or lifting mid-print. This ensures accurate registration and consistent, crisp results across the full 24" printing width.

printheads

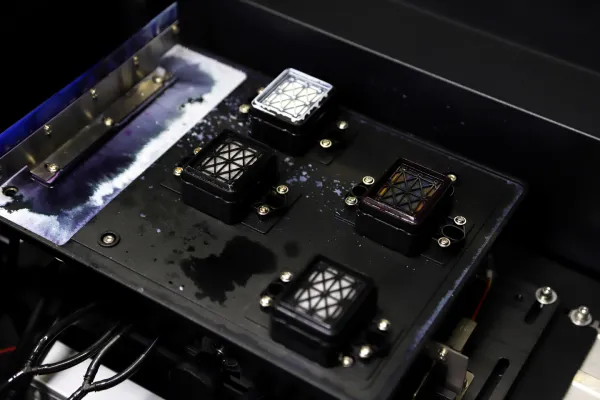

Epson Printheads

Equipped with 4 Epson i3200-U1 printheads, the 600ST delivers sharp, high-resolution printing at industrial speed — up to 5.5 m²/h at 6-pass. This multi-head configuration ensures accurate ink placement and fine detail reproduction, supporting both large-format UV DTF transfers and intricate UV foil stamping designs.

cartouche d'encre

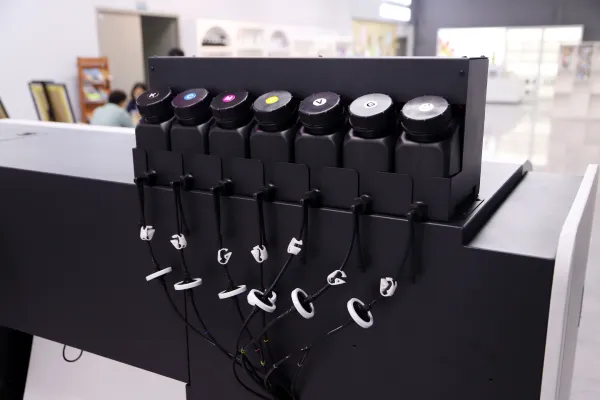

Cartouche d'encre

The 600ST uses a large-capacity ink cartridge system with built-in stirring and low-ink alerts, ensuring stable, uninterrupted supply during long production runs. Independent color channels prevent cross-contamination, delivering consistent, vivid results across every batch.

emergence button

Bouton « Émergence »

A clearly marked emergency stop button allows operators to immediately halt the machine in the event of a malfunction or safety concern. This quick-access safety feature provides peace of mind during high-speed, continuous UV DTF and UV foil stamping production, protecting both equipment and operators.

Foil Stamping Effect—UV Printer Machine-600ST

Caractéristiques techniques

Modèle600ST
Têtes d'impression4 pièces Epson i3200-U1
Largeur d'impression24 pouces (60 cm)
Vitesse d'impression la plus élevée6PASS:8㎡/h
Vitesse d'impression standard6PASS:5.5㎡/h
DPI720*1800
Température/Humidité20-30 °C/45-65%RH
Transmission multimédiaSystème d'alimentation en supports
Types d'encreencre UV
Couleur d'impressionW + CMJN + V + Vernis métallisé
RIP SoftwareStandard with RIIN or Printfactory ; For Option: Maintop, PhotoPrint
Puissance4KW
Alimentation électrique / Tension220V, 11.3A, 50HZ
Dimensions de la machineL 1 850 × l 990 × H 1 610 mm
Contenance de l'emballageL2140*W1160*H1630mm
Poids net400KG
Poids brut465KG

Applications de l'imprimante UV DTF Xinflying

uv foil stamping (5)
estampage à chaud UV
estampage à chaud UV
estampage à chaud UV pour bouteille
estampage à chaud UV pour boîte
estampage à chaud UV pour produit électronique

Foire aux questions

The Xinflying UV Printer Machine-600ST is equipped with 4x Epson i3200-U1 printheads and supports a 24" (60cm) printing width. This wide-format setup delivers fast, high-resolution output at 5.5 m²/h (6-pass), making it well-suited for larger designs and higher-volume production.
The 600ST automates the entire UV foil stamping process in one pass — including printing, foil transfer, waste discharge, and laminating. This eliminates manual handoffs between steps, reducing labor and significantly speeding up production of metallic-effect labels and transfers.
The 600ST uses a large-capacity ink system with built-in stirring and low-ink alerts, ensuring ink stays consistent and operators are notified before levels run low. This prevents unexpected interruptions and helps maintain steady, high-quality output throughout extended print jobs.
The 600ST features water-cooled UV curing lamps combined with intelligent bottom heating, delivering consistent, long-term stable curing performance. This ensures strong adhesion and durable, stunning metallic finishes on every UV foil transfer.
The 600ST is equipped with an emergency stop button for quick shutdown in case of malfunction, along with a vacuum-grip printing platform that keeps materials securely in place. Together, these features support safer, more reliable operation during high-speed, continuous production.
