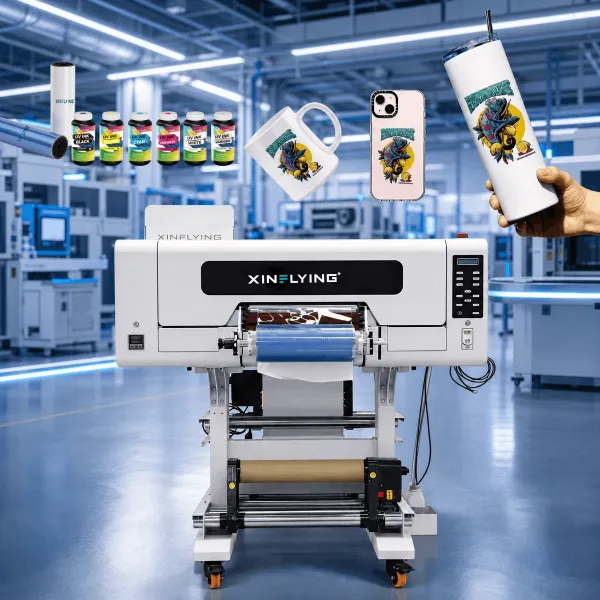

Impressora UV Xinflying - 450S

Crystal UV DTF Printer Machine XF-450S is designed for high-quality crystal label and UV transfer printing applications. It supports vibrant CMYK colors, white ink, and varnish printing for premium sticker effects with strong adhesion and scratch resistance. Ideal for glass, metal, plastic, acrylic, packaging, gifts, and custom branding industries. The compact structure, stable printing system, and easy operation make it suitable for both small businesses and industrial production environments.

Especificações técnicas:

Print Width: 12”
Print Speed: 8Pass:2.75m²/h
Printhead: 3pcs i1600-U1
Dimension: L1300*W1000*H1450mm
Peça um orçamento gratuito
Baixar arquivo

Recursos profissionais

Dual-Fan Smart Cooling System

Equipped with a high-efficiency dual-fan cooling module that continuously dissipates heat from the printhead and circuit board during extended production runs. This smart thermal management design helps prevent overheating, reduces the risk of nozzle clogging and ink dropout caused by excess heat, and extends printhead lifespan — keeping your printer running reliably even under heavy daily workloads.

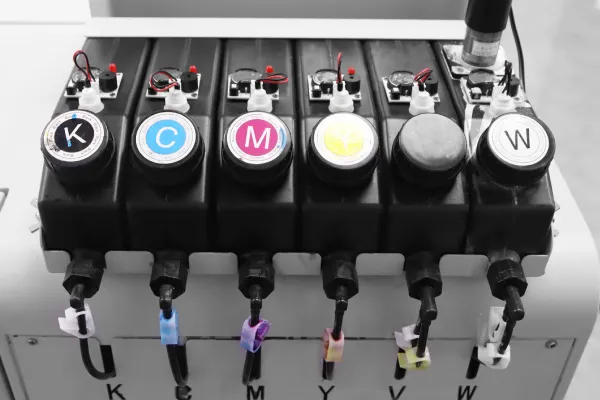

Ink Alam

Ink Channel System

Features an independent CMYK + White (W) ink channel design, with white ink laid down as a base layer to produce bright, saturated results on transparent, dark, or non-white substrates. The separate ink pathways prevent color bleeding and cross-contamination, delivering smoother color transitions. Ideal for UV DTF transfer applications on acrylic, glass, metal, leather, and more.

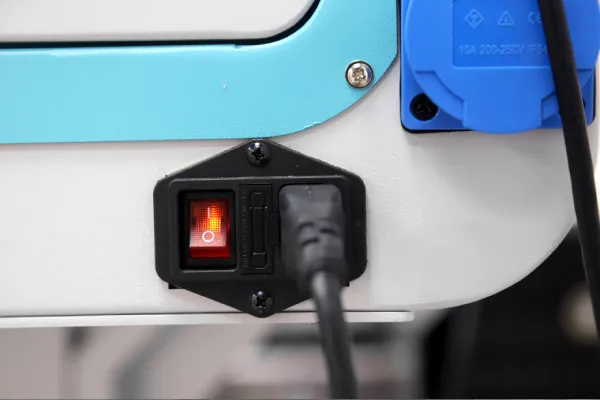

Operate button

Simple Operation

A clearly marked one-touch power switch with an illuminated red indicator shows machine status at a glance, making the printer easy to operate even for first-time users. Built-in overload protection improves electrical safety, making it well-suited for factories and small studios that power the machine on and off frequently throughout the day.

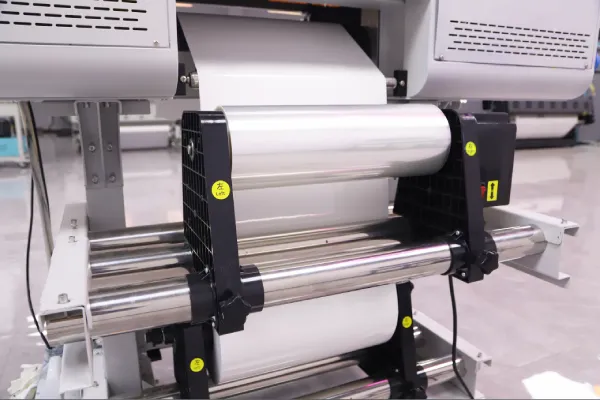

Paper Rewinder

Automatic Take-Up & Feeding System

Built-in front-mounted automatic feeding and take-up rollers allow continuous film feeding and winding with minimal manual intervention, significantly boosting output for high-volume production. The precision synchronized drive keeps tension even across the roll, preventing wrinkling or misalignment — perfect for continuous production of UV DTF stickers, transfer film, and other roll-fed materials.

Xinflying 450S UV DTF Sticker Printer | 12" Width, 3 Epson Printheads

Especificações técnicas

Modelo450S
Cabeçotes de impressão3 unidades da Epson i1600-U1
Largura de impressão12”（30cm)
Velocidade de impressão mais rápida8Pass:3.5㎡/h
Velocidade padrão de impressão8Pass:2.75㎡/h
Cor de impressãoCMYK+W+V
Tipo de mídiaFilme PET A+B UV
Sistema operacionalWindows 11 (64 bits)/Windows 10 (64 bits)
RIP SoftwarePadrão com RIIN ou Printfactory; Opcional: Maintop, PhotoPrint
Potência1KW
Fonte de alimentação/Tensão220V/110V，4.5A/9A，50HZ/60HZ
Dimensões da máquinaC1300 × L1000 × A1450 mm
Tamanho da embalagemL1430*W830*H780mm
Peso líquido120KG
Peso bruto155KG

Aplicações da impressora de adesivos UV DTF da Xinflying

Impressão UV DTF para capas de celular
Impressão UV DTF para garrafas
Impressão UV DTF para carros
Impressão UV DTF para decoração
Impressão UV DTF para etiquetas adesivas
packaging

Perguntas frequentes

The Xinflying UV Printer Machine-450S is equipped with 3 Epson printheads (1x Epson i3200-U1-HD + 2x Epson i1600-U1). This multi-head configuration delivers ultra-high resolution, faster output speeds, and more consistent color coverage compared to single-head printers, making it well-suited for high-volume, detail-critical UV transfer work.
The Xinflying UV Printer Machine-450S integrates printing and laminating into one compact system, so you don't need a separate laminator for sticker label production. This all-in-one design saves floor space, reduces production steps, and improves workflow efficiency — especially valuable for producing UV DTF sticker labels.
The Xinflying UV Printer Machine-450S has a printing width of 12" and a print speed of 2.75 m²/h at 8-pass mode. This balance of width and speed makes it suitable for small-to-medium batch production of labels, decals, and custom UV transfers.
The machine uses air-cooled UV curing lamps that cure ink quickly and evenly as it prints. This results in strong, durable adhesion on a wide range of substrates including glass, metal, and plastic, while the air-cooling design helps maintain stable lamp temperature during continuous operation.
The Xinflying UV Printer Machine-450S includes printhead anti-collision protection to prevent damage during operation, along with a large-capacity ink supply system and a low-ink alarm. These features reduce the risk of interruptions or costly repairs, supporting safer, more reliable continuous production runs.
