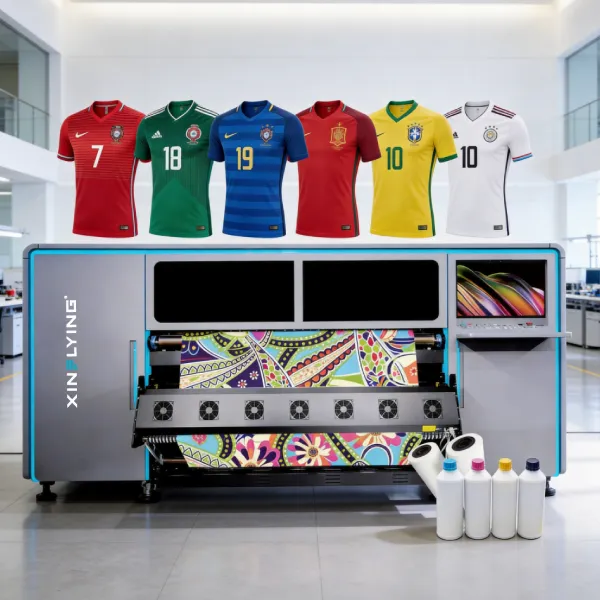

Imprimante à sublimation thermique Xinflying - 19E8PRO
Caractéristiques techniques :
Fonctionnalités professionnelles

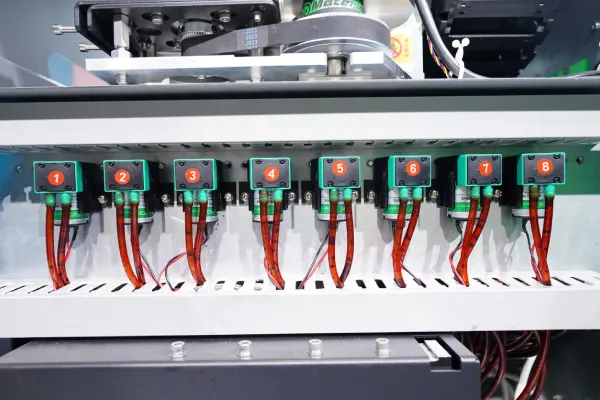

8-Head Printhead Array
Eight Epson i3200-A1 printheads are arranged in a single row for high-speed, high-resolution output across the full print width. This configuration significantly boosts throughput compared to smaller head-count models, suited for factory-level production.

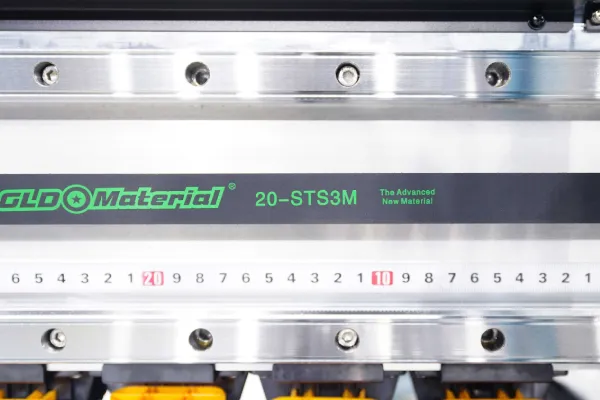

High-Precision Linear Guide System
A precision linear rail and encoder strip keep the print carriage's position accurate to a fine tolerance as it moves at high speed. This ensures consistent print registration and sharp detail even during long, continuous production runs.

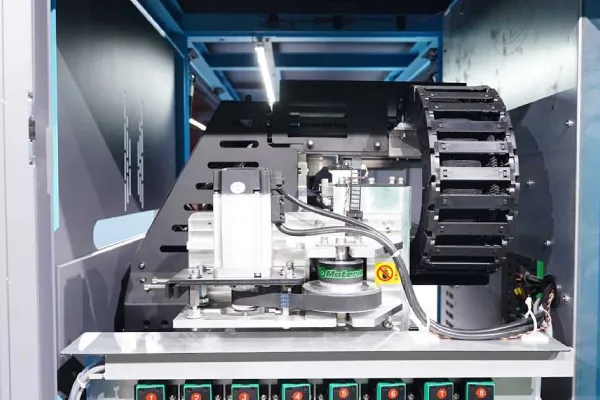

Industrial Drive & Cooling Assembly
A reinforced internal drive mechanism paired with active cooling keeps the carriage motor running reliably during extended high-speed operation. This combination helps prevent overheating and mechanical wear during multi-shift production.

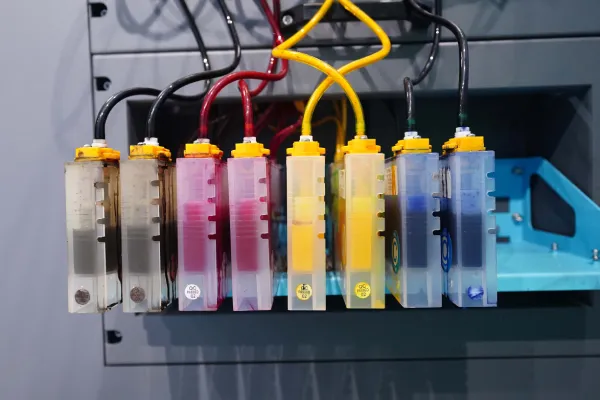

Système de cartouches d'encre
Large-capacity ink cartridges feed each printhead directly, reducing how often operators need to refill during long runs. This keeps production moving with fewer interruptions on high-volume jobs.
Best Industrial Dye Sublimation Printer-Xinflying 19E8Pro
Caractéristiques techniques
| Modèle | 19E8-PRO |
| Têtes d'impression | 8 pièces Epson i3200-A1 |
| Résolution d'impression | 3200DPI |
| Vitesse d'impression la plus élevée | 1PASS:306m²/h ; 2PASS:153m²/h |
| Vitesse d'impression standard | 1PASS:210m²/h ; 2PASS:109m²/h |
| Largeur d'impression | 75”(190CM) |
| Type d'encre | Sublimation Ink ; Color : CMYK |
| Printing Media | Sublimation Paper |
| Température/Humidité | 18℃-30°C, 35%-65% |
| RIP Software | Standard with Maintop ; For Option:RIIN(Only for Hoson board), PhotoPrint, Printfactory |
| Voltage | 210-230V，45A |
| Puissance | 10.2KW |
| Drying Method | Externalintelligent air-heatintegrated dryer |
| Moisturizing Mode | Fully sealed automatic moisturizing and cleaning |
| Dimensions de la machine | L 3 840 × l 1 300 × H 1 800 mm |
| Contenu de l'emballage | L4010*W1180*H2160mm |
| Poids net | 1400KG |
| Poids brut | 1500KG |
Xinflying Dye Sublimation Printer Applications
