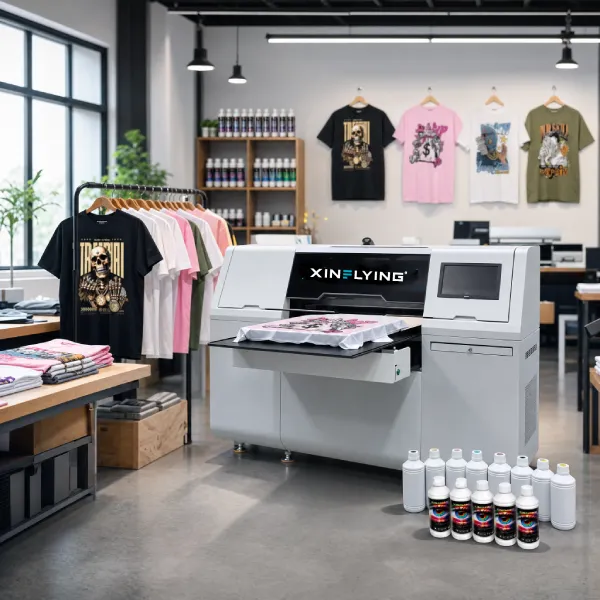

Imprimante textile DTG Xinflying-20

High-efficiency double-station DTG printer with Epson I3200-A1 printheads, integrated pre-treatment and printing system for fast, stable, and high-volume garment production.

Caractéristiques techniques :

Print Width: 400*500mm
Print Speed: 4Pass:720*1200
6Pass : 720 × 1 800
Printhead: 4 pcs Epson i3200-A1
Dimension: L2153*W1236*H1406mm
Obtenir un devis gratuit
Télécharger le fichier

Fonctionnalités professionnelles

Caractéristiques de l'imprimante DTG

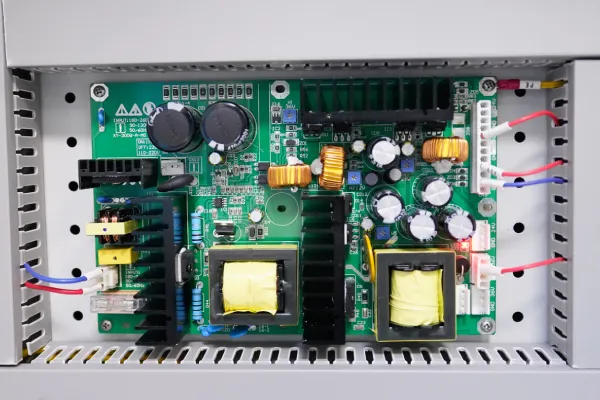

Main Control Board

This main control board manages core electrical functions across the DTG garment printer, coordinating power distribution and signal processing to the printheads. A well-organized board layout like this makes diagnosing electrical issues faster during routine servicing.

Caractéristiques de l'imprimante DTG

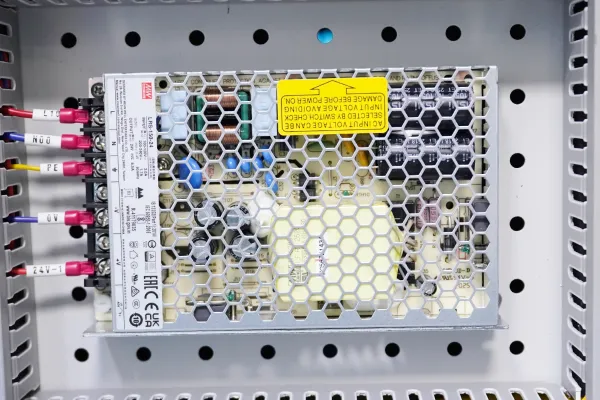

Power Supply Module

This power supply module regulates and stabilizes voltage delivery throughout the DTG garment printer, keeping output consistent even during long production shifts. Reliable power regulation matters more on a 4-head machine like this one, where multiple printheads draw power simultaneously.

Caractéristiques de l'imprimante DTG

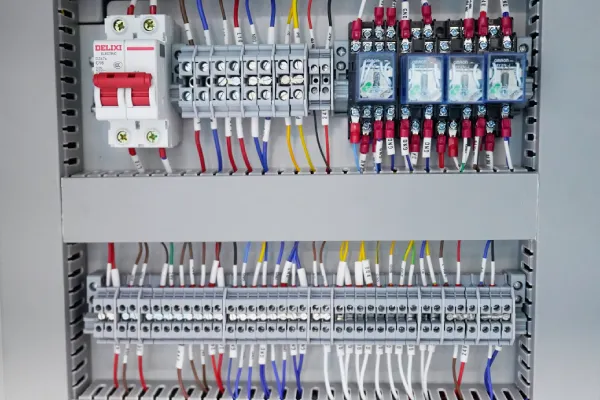

Circuit Breaker Panel

A dedicated circuit breaker panel protects the DTG garment printer's electrical system from overload, safeguarding both the machine and operators during daily use. Clearly labeled wiring also makes it easier for technicians to isolate a specific circuit if troubleshooting is ever needed.

white ink button

White Ink Indicator

This illuminated indicator shows white ink status at a glance on the DTG garment printer, helping operators catch low ink or flow issues before they affect a print job. Quick visual confirmation like this is especially useful on a 4-head machine running frequent back-to-back orders.

DTG Printer Machine That Doesn't Slow Down — Xinflying DTG-20

Caractéristiques techniques

ModèleDTG-20
Tête d'impression4 pièces Epson i3200-A1
Print Format400 × 500 mm
Système d'encre Textile pigment ink
Print Resolution for Fabrics4PASS: 720*1200; 6PASS: 720*1800
Suitable FabricProducts with more than 50% cotton content.
Max Thickness20MM
Vitesse d'impressionOne piece per minute
RIP SoftwareRIIN
Système d'exploitationWindows11(32/64bit)/windows 10(32/64bit)
Control Panel15-inch computer monitor
Alimentation électrique / Tension220V/110V ; 5A/10A ; 50HZ/60HZ
Puissance1300W
Température/Humidité20°C-30°C; 60%-70%
Dimensions de la machineL 2153 × l 1236 × H 1406 mm
Contenu de l'emballageL2303*W1376*H1600mm
Poids net500KG
Poids brut680KG

Applications de l'imprimante textile DTG Xinflying

Imprimante DTG pour t-shirts
Imprimante DTG pour sweats à capuche
Imprimante DTG pour t-shirts
Imprimante DTG pour sweats à capuche
Imprimante DTG pour t-shirts

Foire aux questions

A well-organized power supply and circuit breaker system reduces the chance of electrical downtime, which matters more here than on a smaller machine since 4 printheads draw more power simultaneously — problems in this area tend to affect the whole production line at once.
It gives a quick visual cue when white ink is running low or flow is inconsistent, so you can address it between jobs instead of discovering a faded underbase halfway through a print run.
Not fundamentally — the components shown here (control board, power supply, breaker panel) follow the same basic layout as smaller machines, just sized to handle the added load of more printheads running together.
With 4 Epson i3200-A1 printheads and speeds up to 720x1200 DPI at 4-pass, it's built for shops running consistent daily orders — well above occasional or hobbyist use, but you'll want to size your expected volume against a 400x500mm print area per garment.
Confirm what local or regional support looks like for electrical components specifically, since board- or power-supply-level issues on a higher-output DTG garment printer are more disruptive to fix DIY than routine printhead maintenance.
