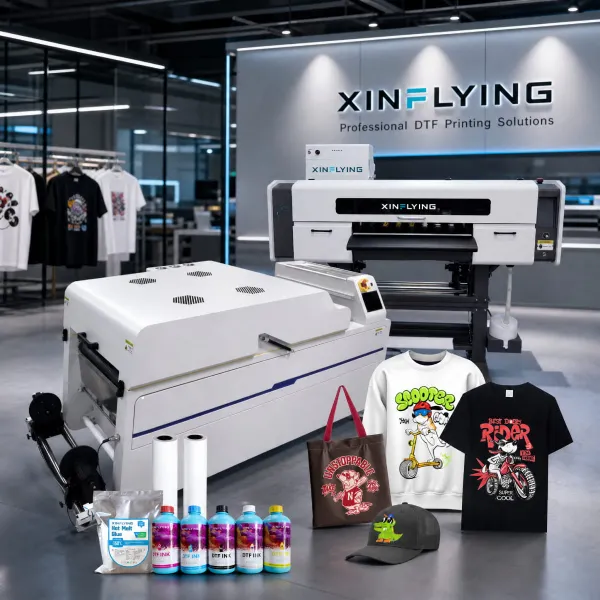

Imprimante DTF Xinflying - 704E

The XF-704E 24-inch DTF Printer is equipped with 4 Epson i3200-A1 printheads, delivering high-speed, stable, and high-precision textile printing.

Caractéristiques techniques :

Largeur d'impression : 24″
Print Speed: 4PASS:27m²/h 6PASS:18m²/h 8PASS:13m²/h
Printhead: 4pcs Epson i3200-A1
Dimension: L1740*W910*H1610mm
Obtenir un devis gratuit
Télécharger le fichier

Fonctionnalités professionnelles

dtf printer-704e-details

Printhead Connector Board

Dedicated connector boards link each printhead to the control system on this DTF printer machine, managing signal transmission with clean, organized wiring. This setup makes it easier to isolate and service a single printhead connection without disturbing the rest of the system.

dtf printer-704e-details

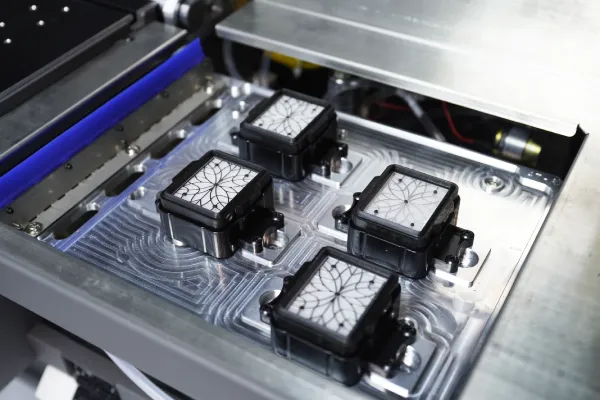

Printhead Array

Four Epson i3200-A1 printheads are mounted in a precision array on this DTF printer machine, delivering high-speed, high-resolution output across the full 24-inch width. This configuration significantly boosts throughput compared to dual-head models, suited for high-volume production.

dtf printer-704e-details

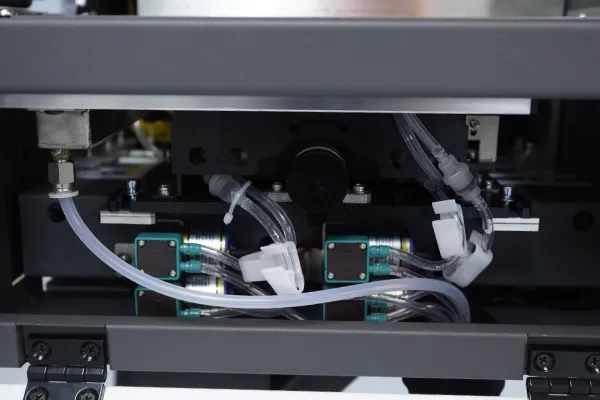

Ink Damper

These ink dampers filter and stabilize ink flow before it reaches the printheads on this DTF printer machine, removing air bubbles that could otherwise cause print defects. Stable, bubble-free ink delivery helps maintain consistent color output during long production runs.

dtf printer-704e-details

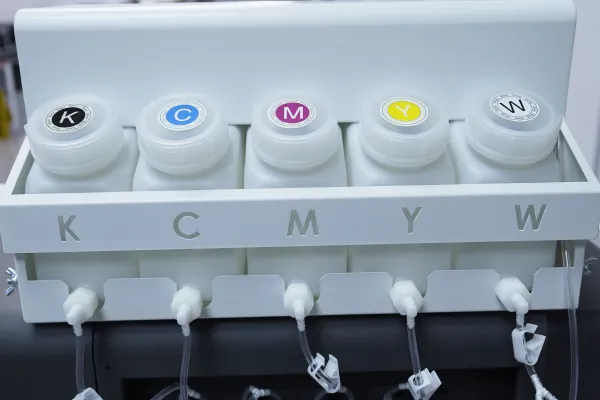

Cartouche d'encre

Individual K/C/M/Y/W ink cartridges feed each color channel independently, making it easy to monitor levels and swap out a single color without disturbing the rest of the system. This setup keeps high-volume production running smoothly with minimal downtime.

High-Volume Textile Printing—Xinflying 704E DTF Printer

Caractéristiques techniques

Modèle704E
Tête d'impression4 pièces Epson i3200-A1
Couleur d'impressionCMJN+CMJN+B+B
Vitesse d'impression la plus élevée4PASS:38m²/h; 6PASS:26m²/h; 8PASS:20m²/h
Vitesse d'impression standard4PASS:27m²/h; 6PASS:18m²/h; 8PASS:13m²/h
Largeur d'impression24 pouces (60 cm)
Type de médiaFilm DTF pour animaux de compagnie
RIP SoftwareFourni en standard avec RIIN ; en option : Maintop, PhotoPrint, CADlink
Température/Humidité20 °C-30 °C / 45%-65%RH
Power/Voltage/Current1.6KW；220V/110V；7.2A/14.5A；50HZ/60HZ
Système d'exploitationWindows 11(64bit) / Windows 10(64bit)
Dimensions de la machineL 1 740 × l 910 × H 1 610 mm
Contenu de l'emballageL1820*W880*H850mm
Poids net162KG
Poids brut200KG

Applications de l'imprimante DTF Xinflying

Applications des imprimantes DTF
Applications des imprimantes DTF
imprimante DTF pour sacs
Imprimante DTF pour t-shirts
Applications des imprimantes DTF

Foire aux questions

Yes — going from 4-pass to 8-pass roughly cuts speed in half, from 27 m²/h down to 13 m²/h, since more passes mean finer detail at the cost of throughput. Most shops run 4-pass for volume work and step up to 6 or 8-pass for designs needing sharper detail.
More printheads mean the print load is split across more nozzles, so the machine covers the same 24-inch width in less time per pass. In practice this translates to noticeably shorter turnaround on daily gang sheet runs compared to a 2-head setup.
It's a passive component that filters air bubbles out of the ink line before it reaches the printhead, so it doesn't need active operation, but it's worth a visual check during routine maintenance to make sure there's no visible air pocket or leakage.
At L1740*W910*H1610mm, it's comparable in footprint to other 24-inch multi-head DTF machines — plan for roughly the space of a large desk plus clearance on all sides for loading film and servicing the printheads.
Shops that have hit a ceiling on daily order volume — typically ones running gang sheets back-to-back and finding the printer, not the designer, is the bottleneck — are the most common candidates for stepping up to a 4-head machine like this.

Produits associés

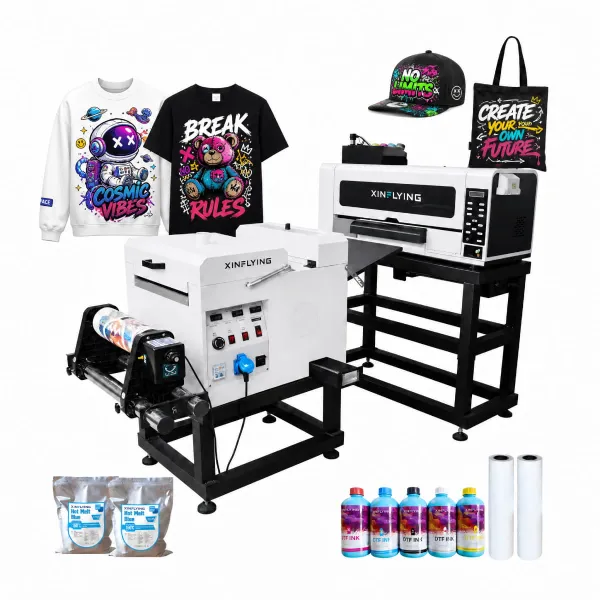

Imprimante DTF xp600

Imprimante DTF Xinflying - 400D

Largeur d'impression

12 pouces

Vitesse d'impression

6 passages : 2,5 m²/h ; 8 passages : 1,5 m²/h

Tête d'impression

2 pièces i1600-A1/XP600

Dimension

L 950 × l 600 × H 1 100 mm

En savoir plus
imprimante DTF

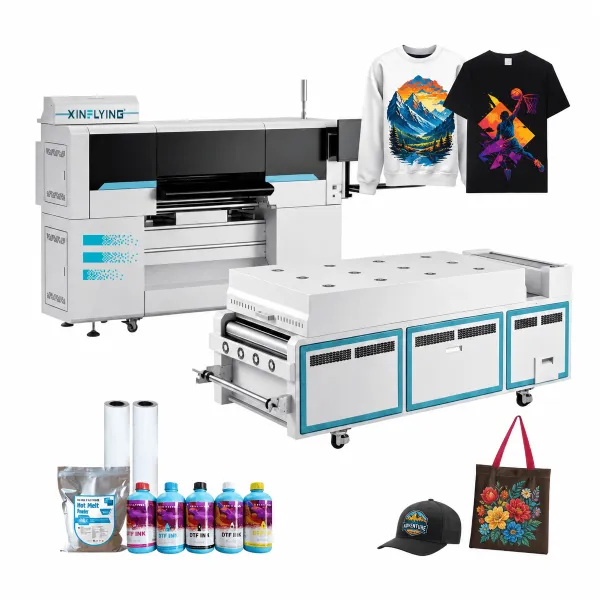

Imprimante DTF Xinflying - F808

Largeur d'impression

31 pouces (80 cm)

Vitesse d'impression

6PASS : 28 m²/h

Tête d'impression

8 pièces Epson i3200-A1

Dimension

L 2 450 × l 910 × H 1 745 mm

En savoir plus
imprimante DTF

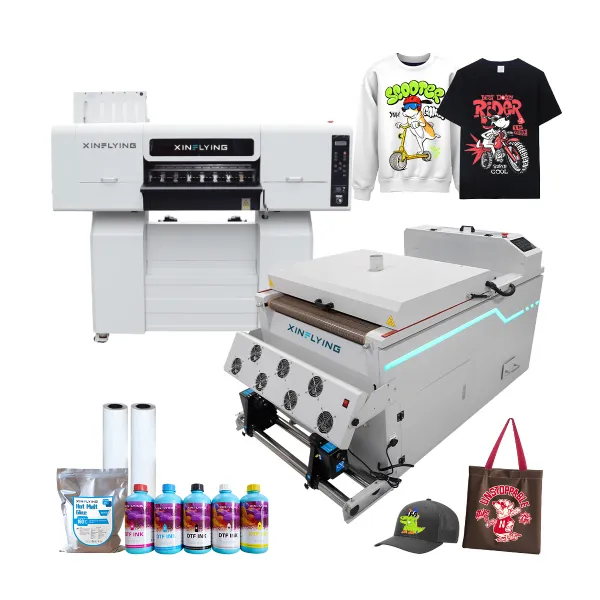

Imprimante DTF Xinflying - C602 (pieds renforcés)
